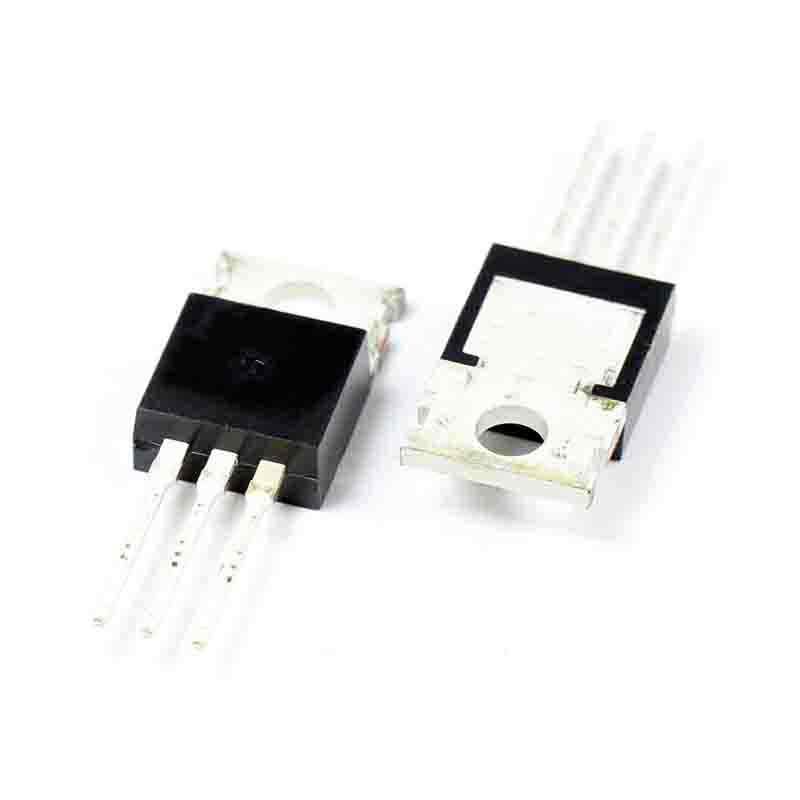

RFP30N06LE TO-220AB MOSFET N-CH 60V 30A TO-220AB

Brand: Fairchild Semiconductor

Product Code: #879469

Availability:In stock

$3.04 3.04

Qty

Ask about this product
RFP30N06LE DescriptionRFP30N06LE Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 30A
Rds On (Max) @ Id Vgs 47 mOhm @ 30A 5V
Vgs(th) (Max) @ Id 2V @ 250?A
Gate Charge (Qg) @ Vgs 62nC @ 10V
Input Capacitance (Ciss) @ Vds 1350pF @ 25V
Power - Max 96W
Mounting Type Through Hole
Supplier Device Package TO-220AB
