CTB12-1200CW TO-220AB TRIAC ALTERNST 12A 1200V TO220AB

Brand: Crydom Co.

Product Code: #437223

Availability:Out of stock

CTB12-1200CW DescriptionCTB12-1200CW Datasheet
Triac Type Alternistor - Snubberless
Voltage - Off State 1200V (1.2kV)
Current - On State (It (RMS)) (Max) 12A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50 60Hz (Itsm) 120A 126A
Current - Gate Trigger (Igt) (Max) 35mA
Current - Hold (Ih) (Max) 35mA
Configuration Single
Mounting Type Through Hole

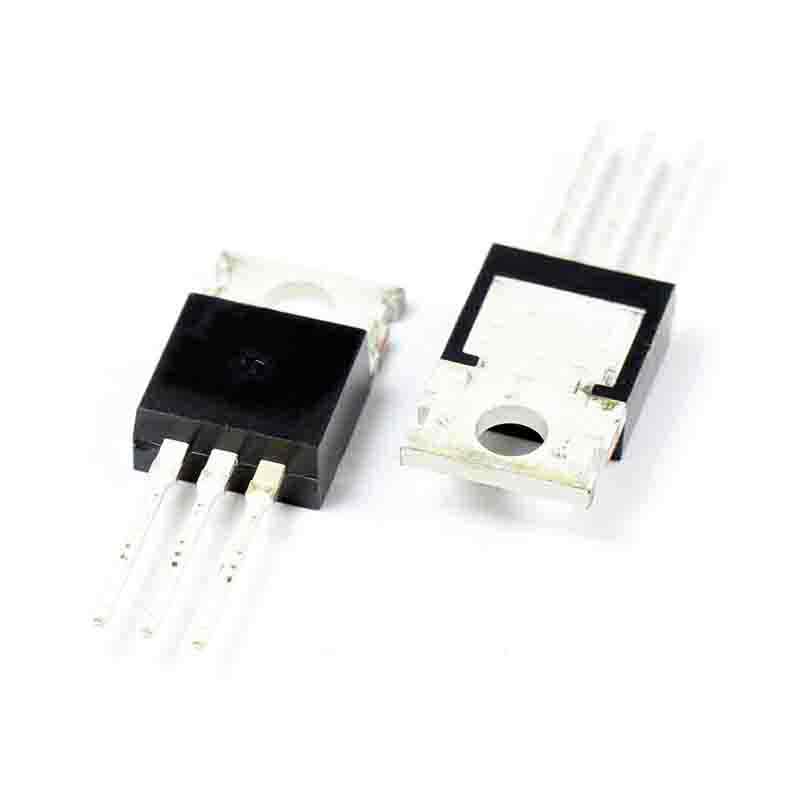

Supplier Device Package TO-220AB
