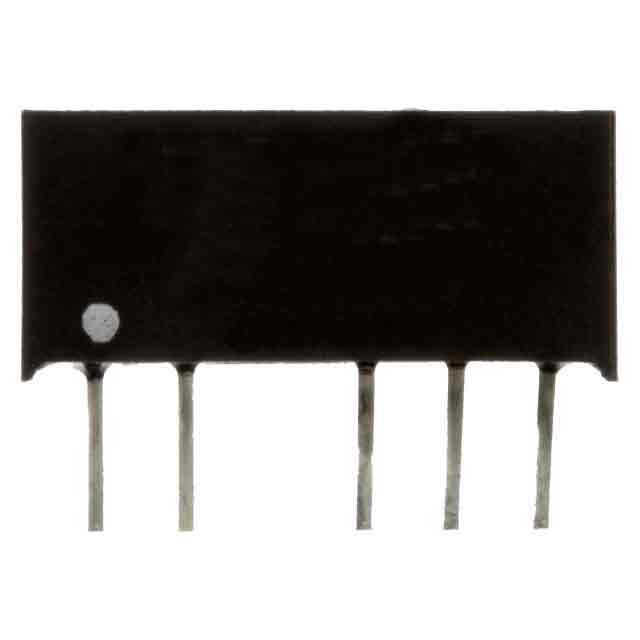

VASD1-S12-D5-SIP 6-SIP Module (5 Leads) CONVERTER DC/DC +/-5V OUT 1W

Brand: CUI Inc

Product Code: #280510

Availability:Out of stock

VASD1-S12-D5-SIP DescriptionVASD1-S12-D5-SIP Datasheet
Type Isolated
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Voltage - Output 3 -
Current - Output (Max) 100mA 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Features -
Mounting Type Through Hole
Size / Dimension 0.77\" L x 0.24\" W x 0.38\" H (19.5mm x 6.0mm x 9.7mm)
Operating Temperature -40C ~ 85C
Efficiency 74%
