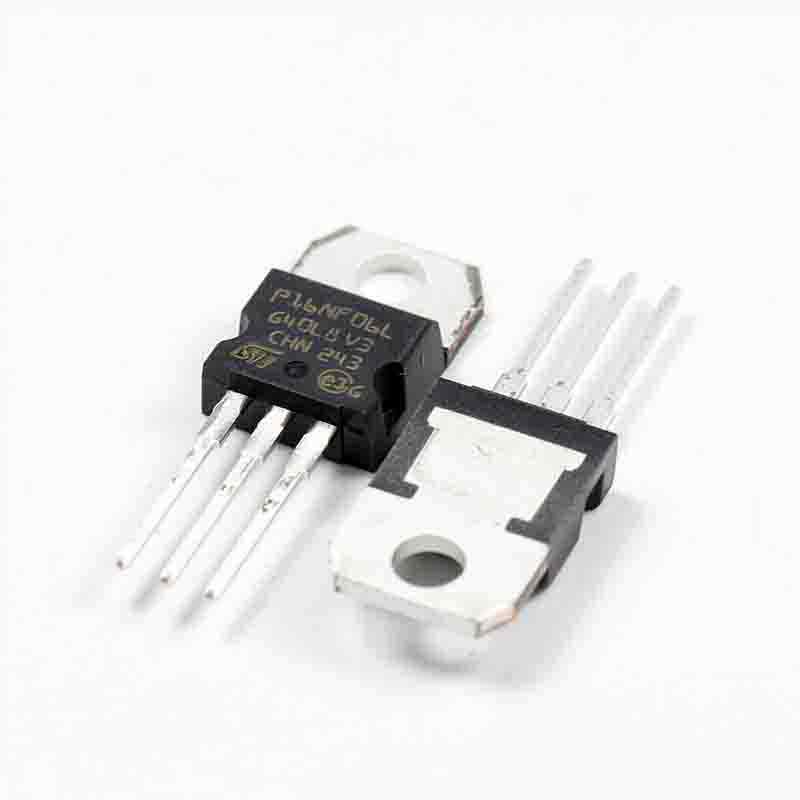

STP16NF06L TO-220AB MOSFET N-CH 60V 16A TO-220

Brand: STMicroelectronics

Product Code: #509983

Availability:In stock

$2.91 2.91

Qty

Ask about this product
STP16NF06L DescriptionSTP16NF06L Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 16A
Rds On (Max) @ Id Vgs 90 mOhm @ 8A 10V
Vgs(th) (Max) @ Id 2.5V @ 250?A
Gate Charge (Qg) @ Vgs 10nC @ 5V
Input Capacitance (Ciss) @ Vds 345pF @ 25V
Power - Max 45W
Mounting Type Through Hole
Supplier Device Package TO-220AB
