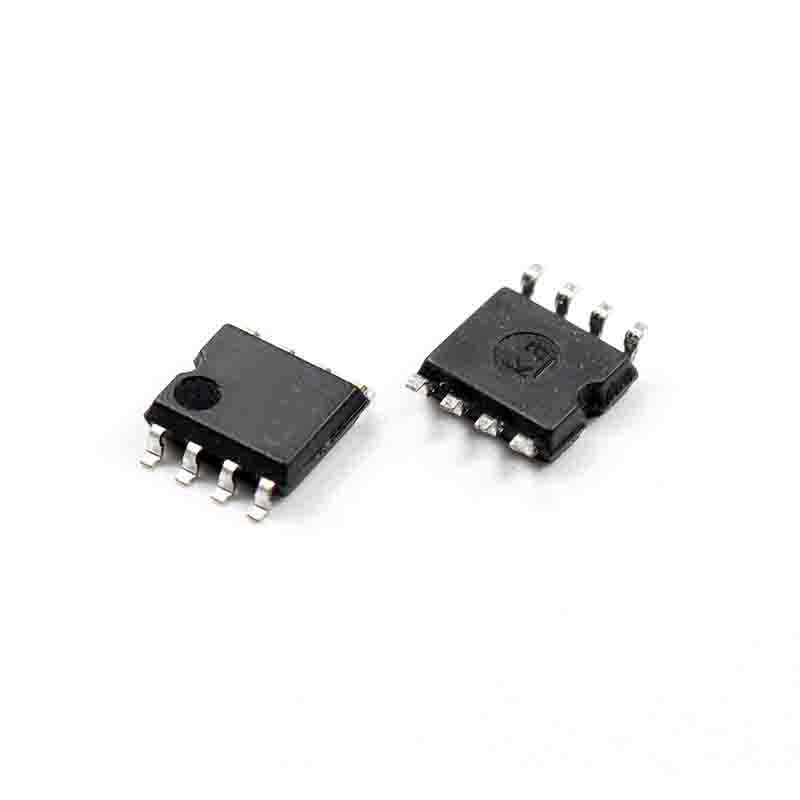

RRH140P03TB1 8-SOP MOSFET P-CH 30V 14A SOP8

Brand: Rohm Semiconductor

Product Code: #321926

Availability:Out of stock

RRH140P03TB1 DescriptionRRH140P03TB1 Datasheet
FET Type MOSFET P-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 14A
Rds On (Max) @ Id Vgs 7 mOhm @ 14A 10V
Vgs(th) (Max) @ Id 2.5V @ 1mA
Gate Charge (Qg) @ Vgs 80nC @ 5V
Input Capacitance (Ciss) @ Vds 8000pF @ 10V
Power - Max 2W
Mounting Type Surface Mount
Supplier Device Package 8-SOP
