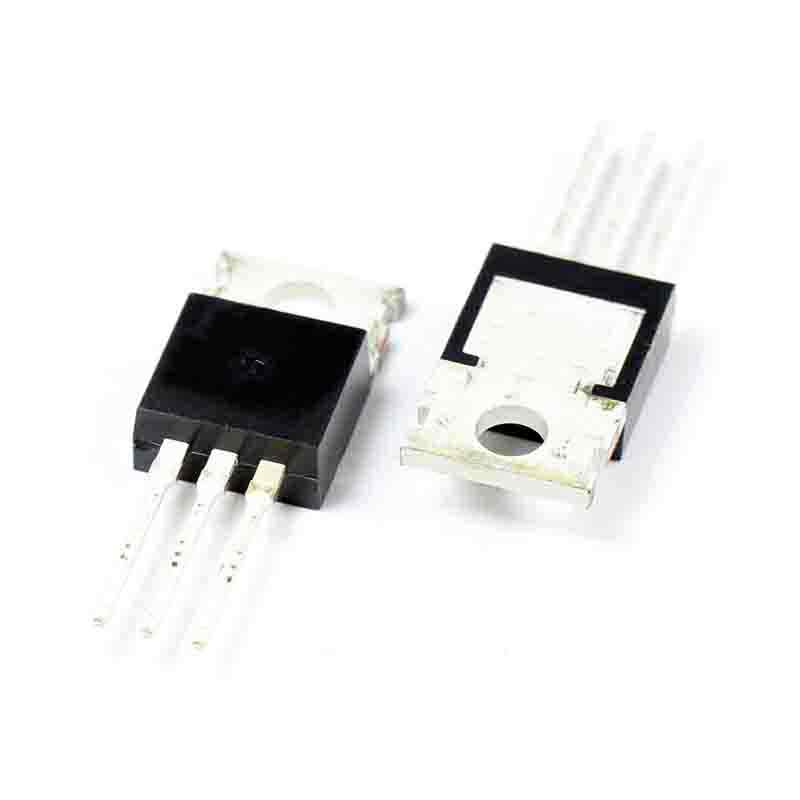

NDP603AL TO-220AB MOSFET N-CH 30V 25A TO-220AB

Brand: Fairchild Semiconductor

Product Code: #879140

Availability:In stock

$2.31 2.31

Qty

Ask about this product
NDP603AL DescriptionNDP603AL Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 25A
Rds On (Max) @ Id Vgs 22 mOhm @ 25A 10V
Vgs(th) (Max) @ Id 3V @ 250?A
Gate Charge (Qg) @ Vgs 40nC @ 10V
Input Capacitance (Ciss) @ Vds 1100pF @ 15V
Power - Max 50W
Mounting Type Through Hole
Supplier Device Package TO-220AB
