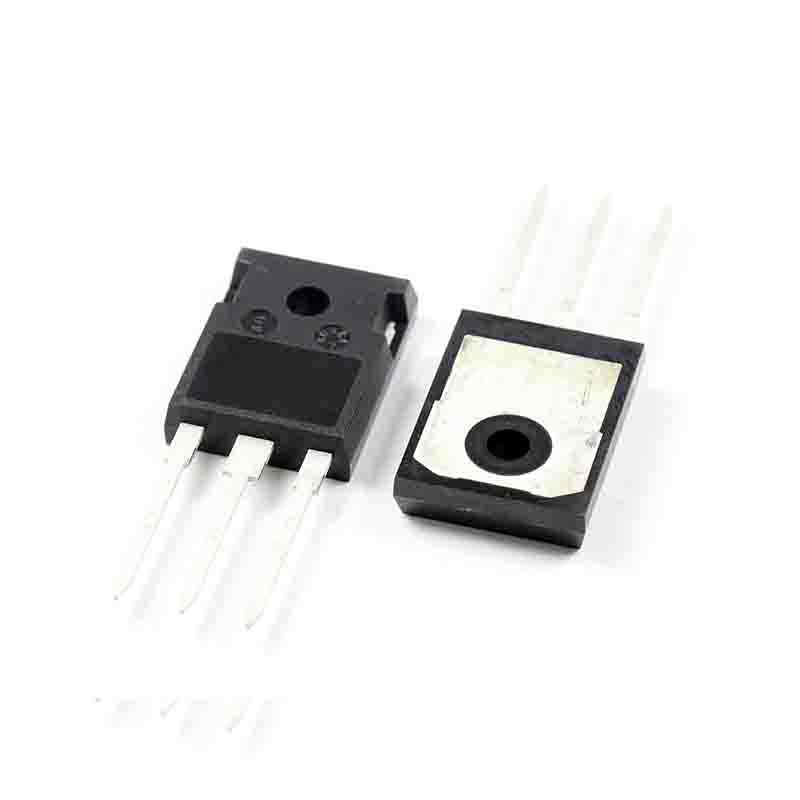

IXTH96N25T TO-247 MOSFET N-CH 250V 96A TO-247

Brand: IXYS

Product Code: #743442

Availability:In stock

$7.83 7.83

Qty

Ask about this product
IXTH96N25T DescriptionIXTH96N25T Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 250V
Current - Continuous Drain (Id) @ 25 C 96A
Rds On (Max) @ Id Vgs 29 mohm @ 500mA 10V
Vgs(th) (Max) @ Id 5V @ 1mA
Gate Charge (Qg) @ Vgs 114nC @ 10V
Input Capacitance (Ciss) @ Vds 6100pF @ 25V
Power - Max 625W
Mounting Type Through Hole
Supplier Device Package TO-247
