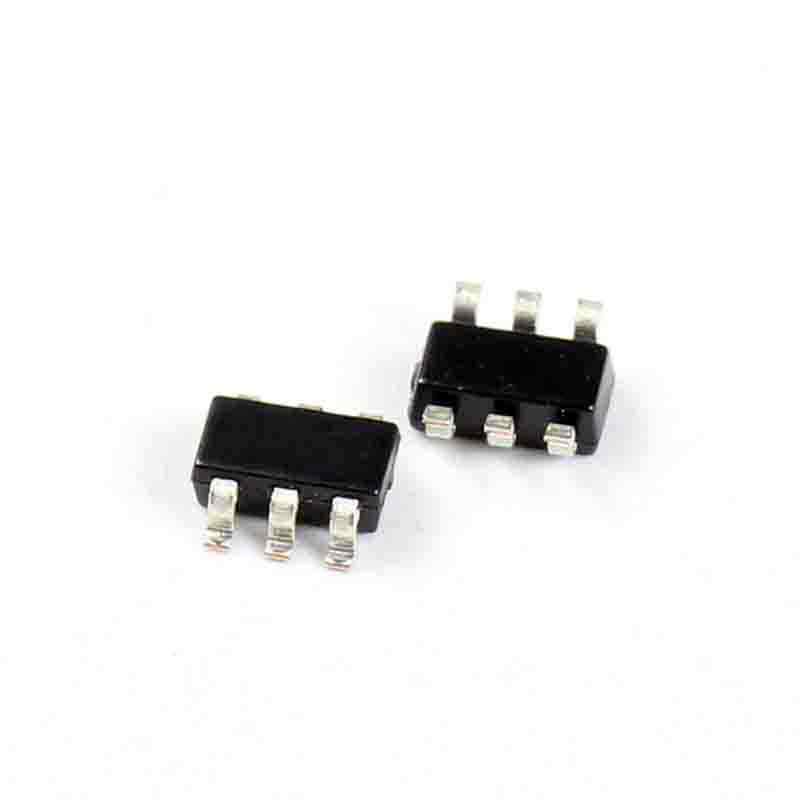

DMP3056LDM-7 SOT-26 MOSFET P-CH 30V 4.3A SOT-26

Brand: Diodes Inc

Product Code: #440174

Availability:In stock

$1.03 1.03

Qty

Ask about this product
DMP3056LDM-7 DescriptionDMP3056LDM-7 Datasheet
FET Type MOSFET P-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 5A
Rds On (Max) @ Id Vgs 45 mOhm @ 4.3A 10V
Vgs(th) (Max) @ Id 2.1V @ 250?A
Gate Charge (Qg) @ Vgs 6.8nC @ 4.5V
Input Capacitance (Ciss) @ Vds 722pF @ 25V
Power - Max 1.25W
Mounting Type Surface Mount
Supplier Device Package SOT-26
