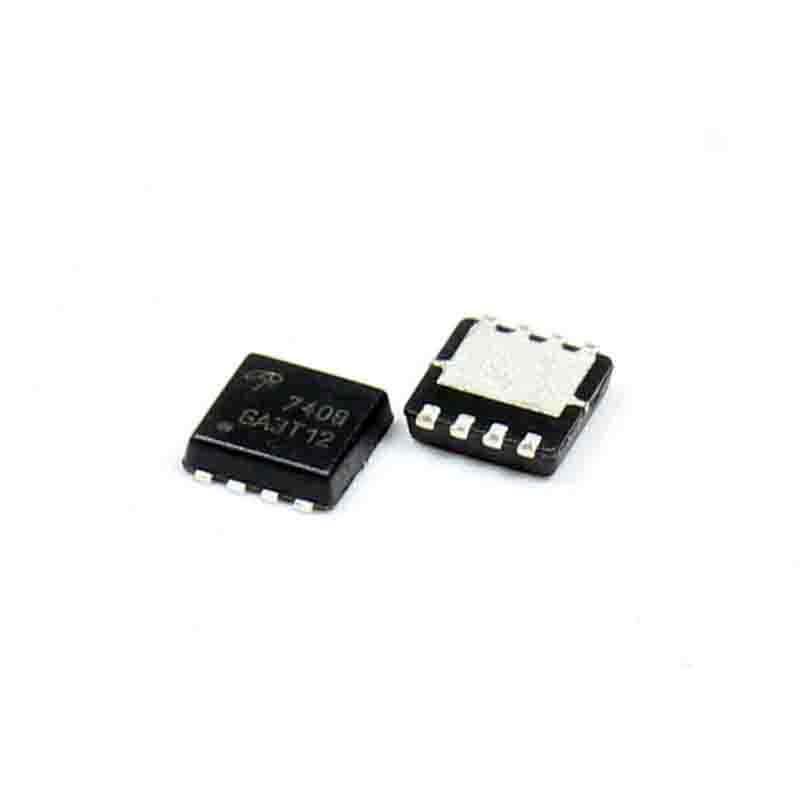

AON7408 8-DFN-EP (3x3) MOSFET N CH 30V 23A 8DFN

Brand: Alpha & Omega Semiconductor Inc

Product Code: #517387

Availability:In stock

$0.96 0.96

Qty

Ask about this product
AON7408 DescriptionAON7408 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 23A
Rds On (Max) @ Id Vgs 20 mOhm @ 10A 10V
Vgs(th) (Max) @ Id 2.6V @ 250?A
Gate Charge (Qg) @ Vgs 8.6nC @ 4.5V
Input Capacitance (Ciss) @ Vds 448pF @ 15V
Power - Max 3.1W
Mounting Type Surface Mount
Supplier Device Package 8-DFN-EP (3x3)
