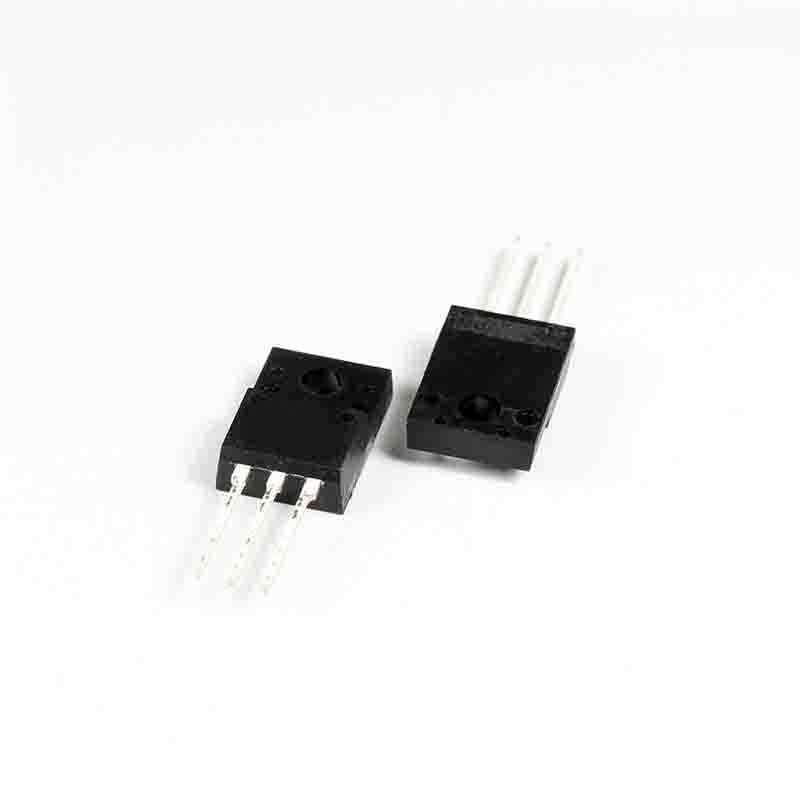

2SK3568(Q,M) TO-220SIS MOSFET N-CH 500V 12A TO-220SIS

Brand: Toshiba

Product Code: #861653

Availability:In stock

$2.91 2.91

Qty

Ask about this product
2SK3568(Q,M) Description2SK3568(Q,M) Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 500V
Current - Continuous Drain (Id) @ 25 C 12A
Rds On (Max) @ Id Vgs 520 mOhm @ 6A 10V
Vgs(th) (Max) @ Id 4V @ 1mA
Gate Charge (Qg) @ Vgs 42nC @ 10V
Input Capacitance (Ciss) @ Vds 1500pF @ 25V
Power - Max 40W
Mounting Type Through Hole
Supplier Device Package TO-220SIS
