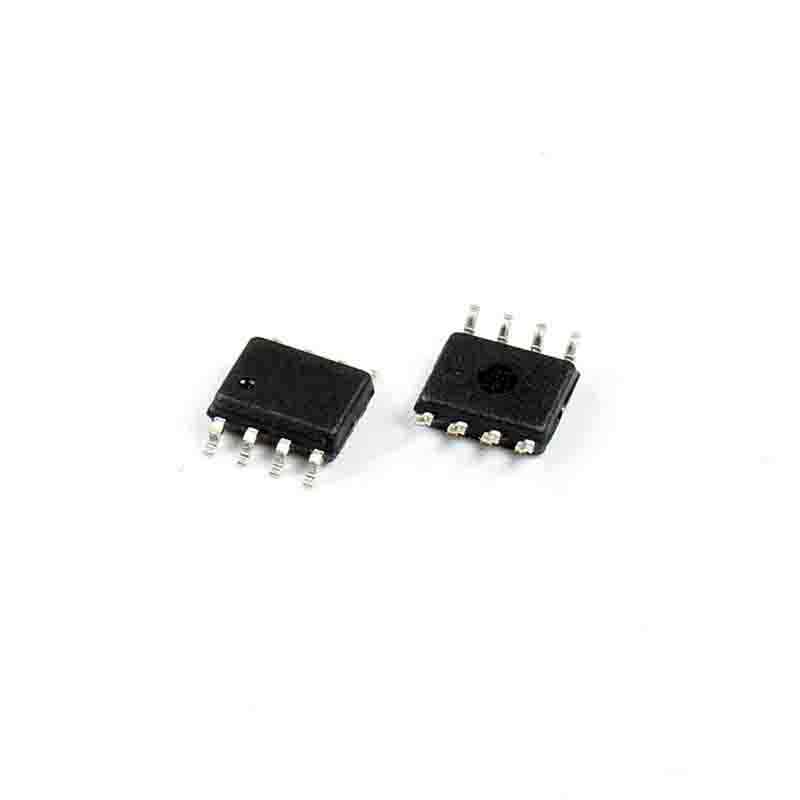

FDS3692 SO-8 MOSFET N-CH 100V 4.5A SO-8

Brand: Fairchild Semiconductor

Product Code: #509092

Availability:In stock

$1.80 1.80

Qty

Ask about this product
FDS3692 DescriptionFDS3692 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25 C 4.5A
Rds On (Max) @ Id Vgs 60 mOhm @ 4.5A 10V
Vgs(th) (Max) @ Id 4V @ 250?A
Gate Charge (Qg) @ Vgs 15nC @ 10V
Input Capacitance (Ciss) @ Vds 746pF @ 25V
Power - Max 2.5W
Mounting Type Surface Mount
Supplier Device Package SO-8
