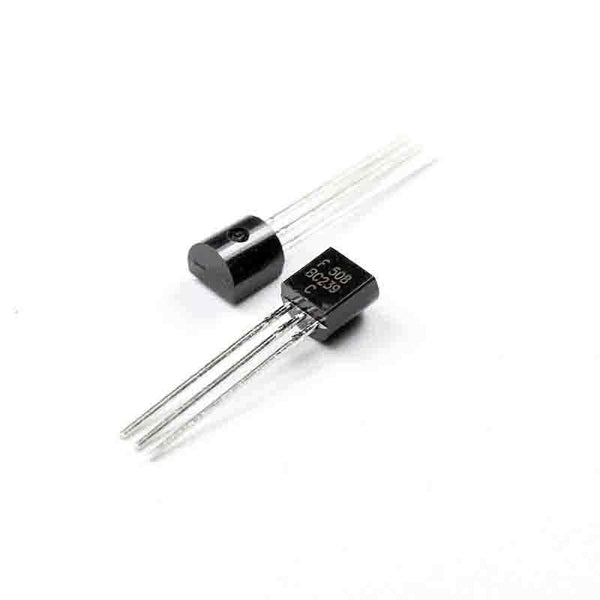

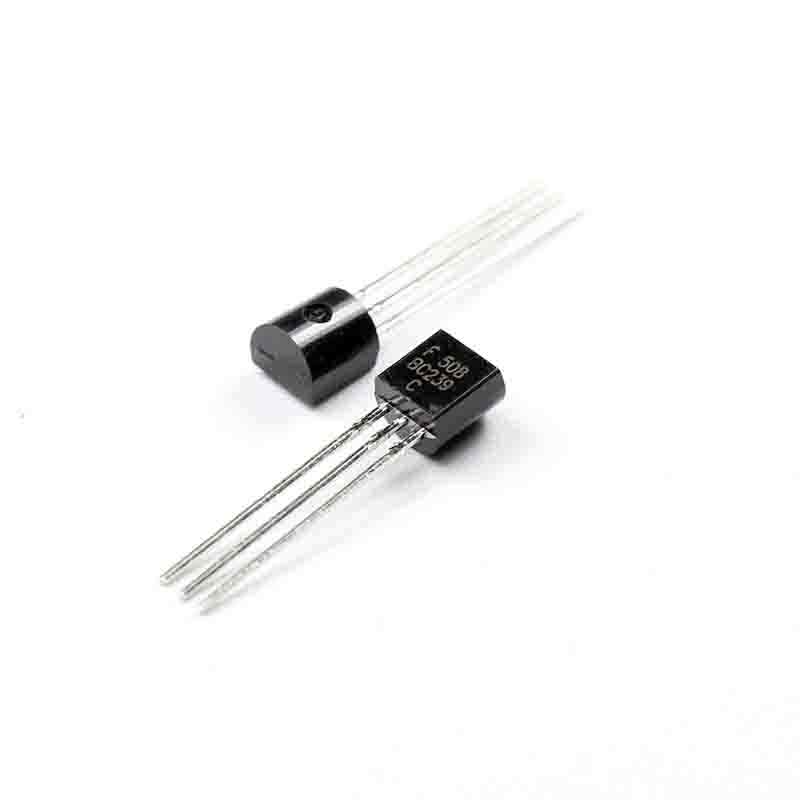

BC239C TO-92-3 TRANSISTOR NPN 25V 100MA TO-92

Brand: ON Semiconductor

Product Code: #677207

Availability:In stock

$0.88 0.88

Qty

Ask about this product
BC239C DescriptionBC239C Datasheet
Transistor Type NPN
Current - Collector (Ic) (Max) 100mA
Voltage - Collector Emitter Breakdown (Max) 25V
Noise Figure (dB Typ @ f) -
Vce Saturation (Max) @ Ib Ic 600mV @ 5mA 100mA
Current - Collector Cutoff (Max) 15nA
Gain -
DC Current Gain (hFE) (Min) @ Ic Vce 380 @ 2mA 5V
Power - Max 350mW
Frequency - Transition 280MHz
Mounting Type Through Hole
Supplier Device Package TO-92-3
