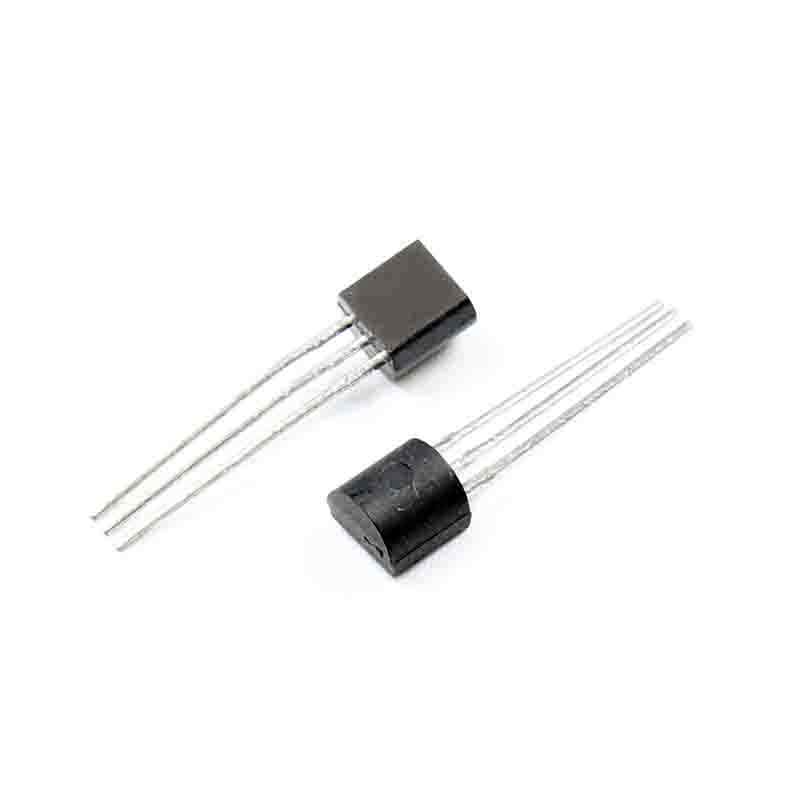

ZVN3306A TO-92-3 MOSFET N-CH 60V 270MA TO92-3

Brand: Diodes Inc

Product Code: #459390

Availability:In stock

$2.34 2.34

Qty

Ask about this product
ZVN3306A DescriptionZVN3306A Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 270mA
Rds On (Max) @ Id Vgs 5 Ohm @ 500mA 10V
Vgs(th) (Max) @ Id 2.4V @ 1mA
Gate Charge (Qg) @ Vgs -
Input Capacitance (Ciss) @ Vds 35pF @ 18V
Power - Max 625mW
Mounting Type Through Hole
Supplier Device Package TO-92-3
