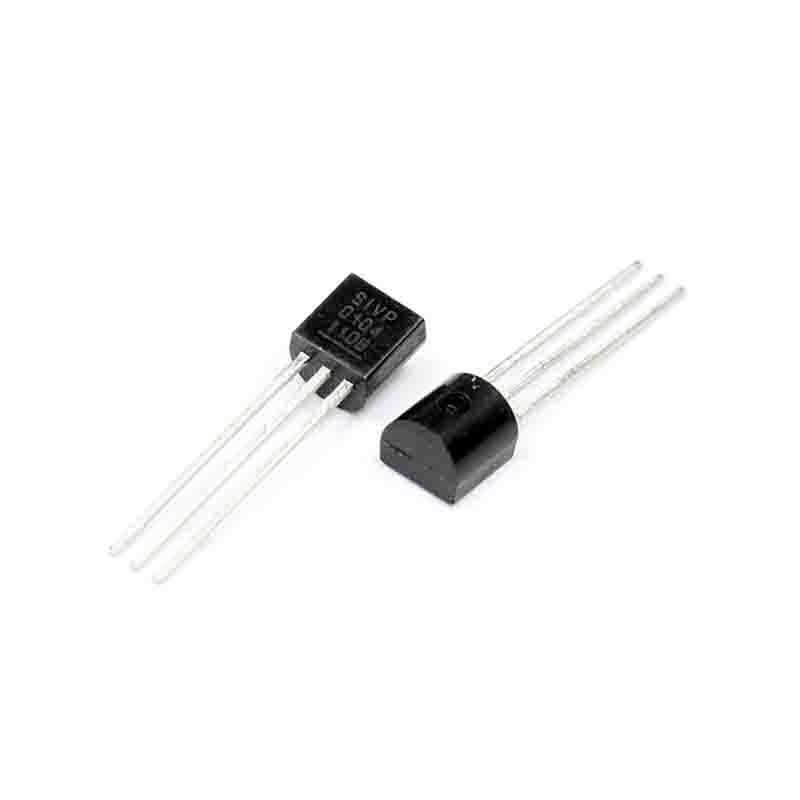

VP0104N3-G TO-92-3 MOSFET P-CH 40V 0.25A TO92-3

Brand: Microchip Technology

Product Code: #1673789

Availability:In stock

$2.90 2.90

Qty

Ask about this product
VP0104N3-G DescriptionVP0104N3-G Datasheet
Compare Parts
Part Number VP0104N3-G-ND
FET Type MOSFET P-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 40V
Current - Continuous Drain (Id) @ 25C 250mA (Tj)
Rds On (Max) @ Id Vgs 8 Ohm @ 500mA 10V
Vgs(th) (Max) @ Id 3.5V @ 1mA
Gate Charge (Qg) @ Vgs -
Input Capacitance (Ciss) @ Vds 60pF @ 25V
Power - Max 1W
Mounting Type Through Hole
