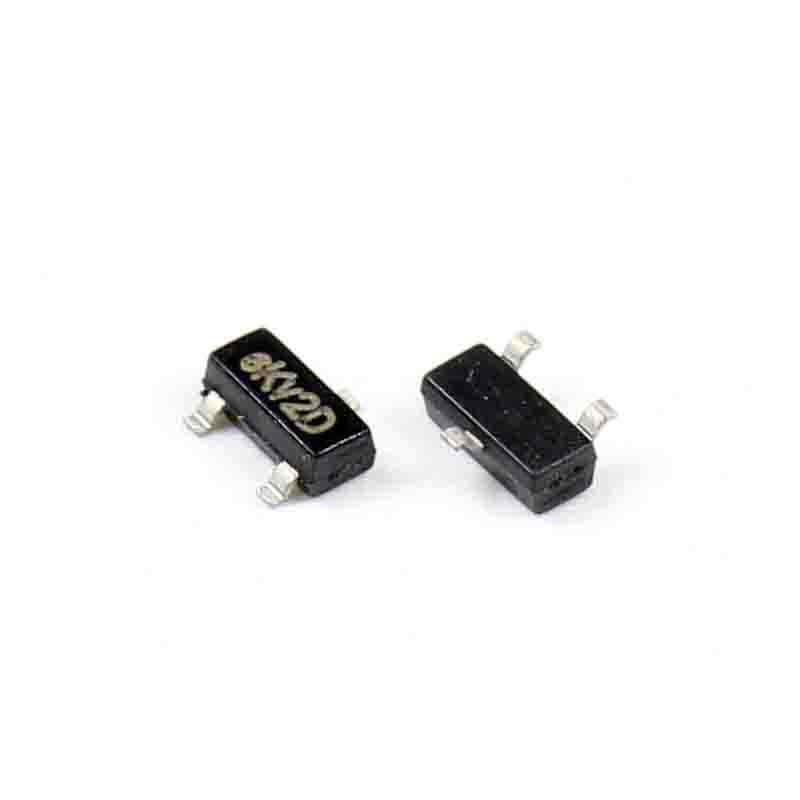

TP0610K-T1-E3 SOT-23-3 (TO-236) MOSFET P-CH 60V 185MA SOT23-3

Brand: Vishay Siliconix

Product Code: #258617

Availability:In stock

$0.81 0.81

Qty

Ask about this product
TP0610K-T1-E3 DescriptionTP0610K-T1-E3 Datasheet
FET Type MOSFET P-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 185mA
Rds On (Max) @ Id Vgs 6 Ohm @ 500mA 10V
Vgs(th) (Max) @ Id 3V @ 250?A
Gate Charge (Qg) @ Vgs 1.7nC @ 15V
Input Capacitance (Ciss) @ Vds 23pF @ 25V
Power - Max 350mW
Mounting Type Surface Mount
Supplier Device Package SOT-23-3 (TO-236)
