TP0202K-T1-E3 SOT-23-3 (TO-236) MOSFET P-CH 30V 385MA SOT23-3

Brand: Vishay Siliconix

Product Code: #259116

Availability:In stock

$1.29 1.29

Qty

Ask about this product
TP0202K-T1-E3 DescriptionTP0202K-T1-E3 Datasheet
FET Type MOSFET P-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 385mA
Rds On (Max) @ Id Vgs 1.4 Ohm @ 500mA 10V
Vgs(th) (Max) @ Id 3V @ 250?A
Gate Charge (Qg) @ Vgs 1nC @ 10V
Input Capacitance (Ciss) @ Vds 31pF @ 15V
Power - Max 350mW
Mounting Type Surface Mount

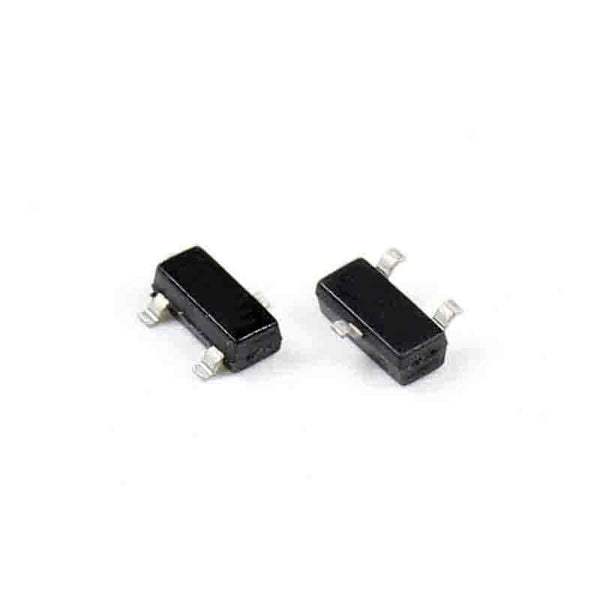

Supplier Device Package SOT-23-3 (TO-236)
