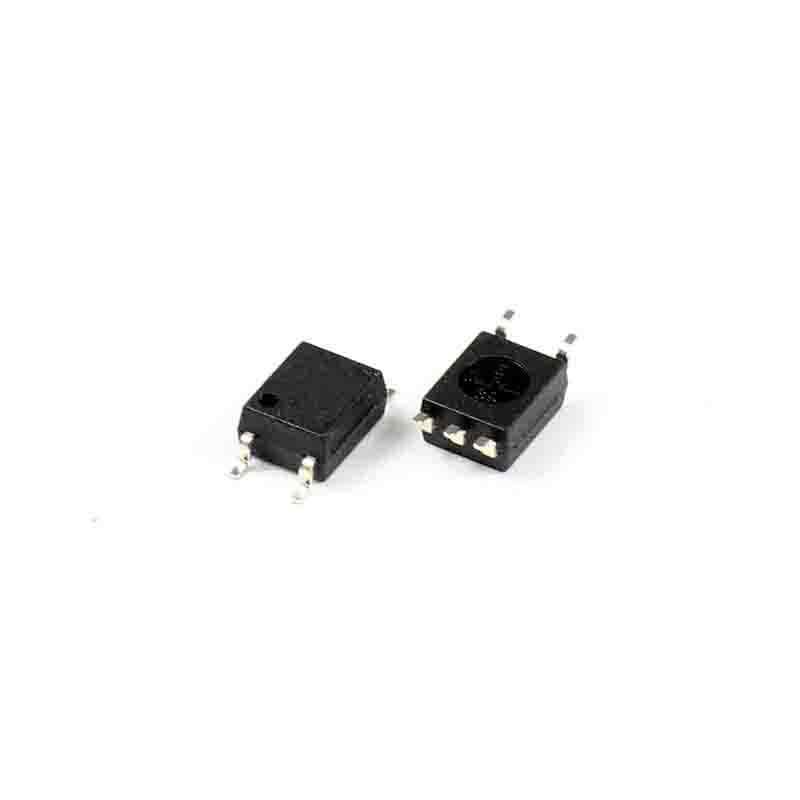

TLP109(TPR,E) 6-SO, 5 Lead OPTOISO 3.75KV TRANS 6-SO 5 LEAD

Brand: Toshiba Semiconductor and Storage

Product Code: #1627074

Availability:In stock

$2.81 2.81

Qty

Ask about this product
TLP109(TPR,E) DescriptionTLP109(TPR,E) Datasheet
Compare Parts
Part Number TLP109(TPRE)TR-ND
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 20% @ 16mA
Current Transfer Ratio (Max) -
Turn On / Turn Off Time (Typ) 800ns 800ns (Max)
Rise / Fall Time (Typ) -
Input Type DC
Output Type Transistor
Voltage - Output (Max) 20V
Current - Output / Channel 8mA
Voltage - Forward (Vf) (Typ) 1.64V
Current - DC Forward (If) (Max) 20mA
Vce Saturation (Max) -
Operating Temperature -55C ~ 125C
Mounting Type Surface Mount
