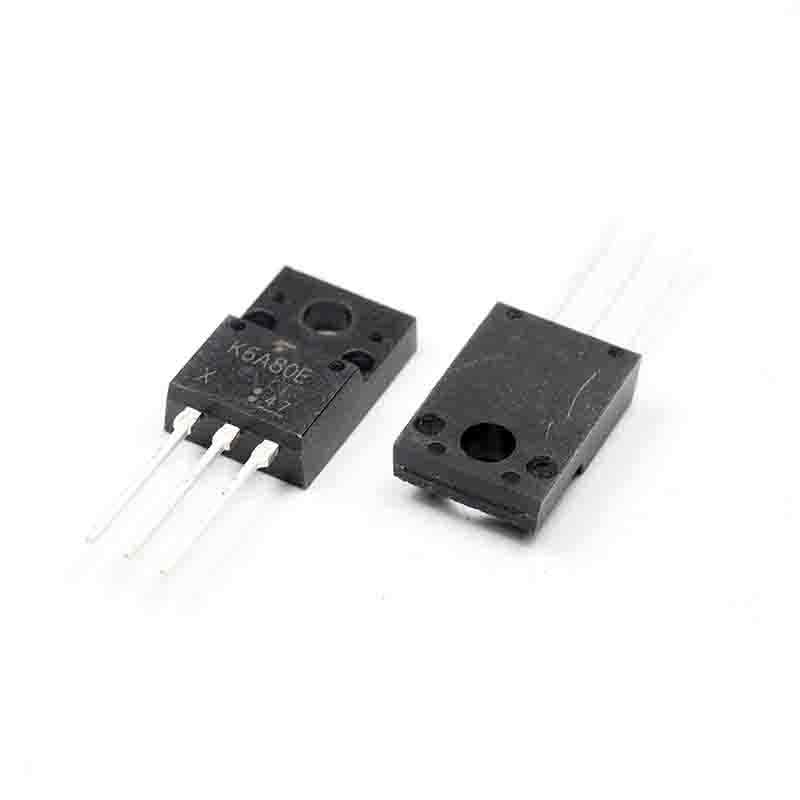

TK6A80E,S4X TO-220SIS MOSFET N-CH 800V TO220SIS

Brand: Toshiba Semiconductor and Storage

Product Code: #1684764

Availability:In stock

$3.83 3.83

Qty

Ask about this product
TK6A80E,S4X DescriptionTK6A80E,S4X Datasheet
Compare Parts
Part Number TK6A80ES4X-ND
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 800V
Current - Continuous Drain (Id) @ 25C 6A (Ta)
Rds On (Max) @ Id Vgs 1.7 Ohm @ 3A 10V
Vgs(th) (Max) @ Id 4V @ 600A
Gate Charge (Qg) @ Vgs 32nC @ 10V
Input Capacitance (Ciss) @ Vds 1350pF @ 25V
Power - Max 45W
Mounting Type Through Hole
