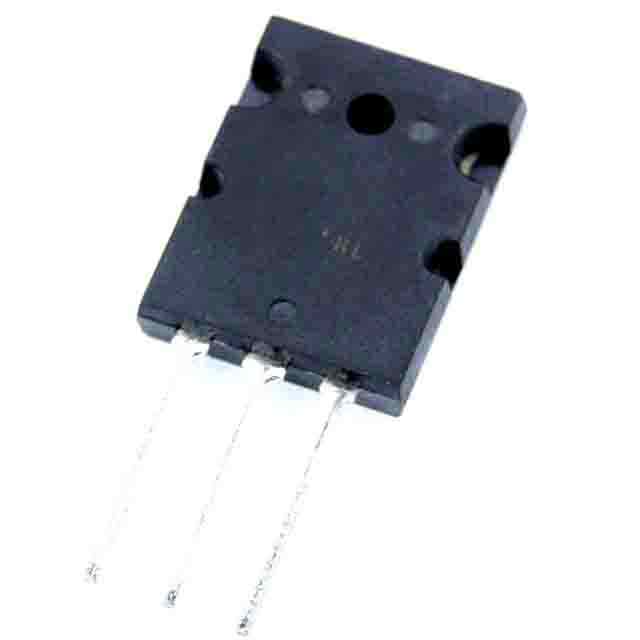

TK40J60T(Q) TO-3P(N) MOSFET N-CH 600V 40A TO-3PN

Brand: Toshiba

Product Code: #863457

Availability:In stock

$0.00 0.00

Qty

Ask about this product
TK40J60T(Q) DescriptionTK40J60T(Q) Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 600V
Current - Continuous Drain (Id) @ 25 C 40A
Rds On (Max) @ Id Vgs 80 mOhm @ 20A 10V
Vgs(th) (Max) @ Id 5V @ 1mA
Gate Charge (Qg) @ Vgs 67nC @ 10V
Input Capacitance (Ciss) @ Vds 3900pF @ 10V
Power - Max 400W
Mounting Type Through Hole
Supplier Device Package TO-3P(N)
