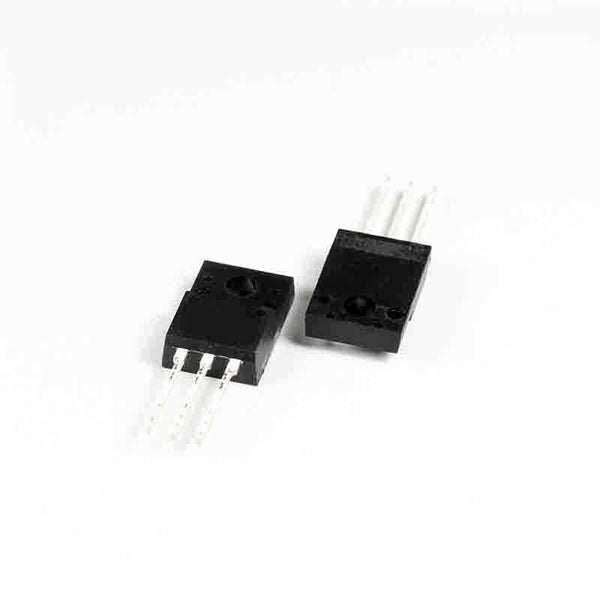

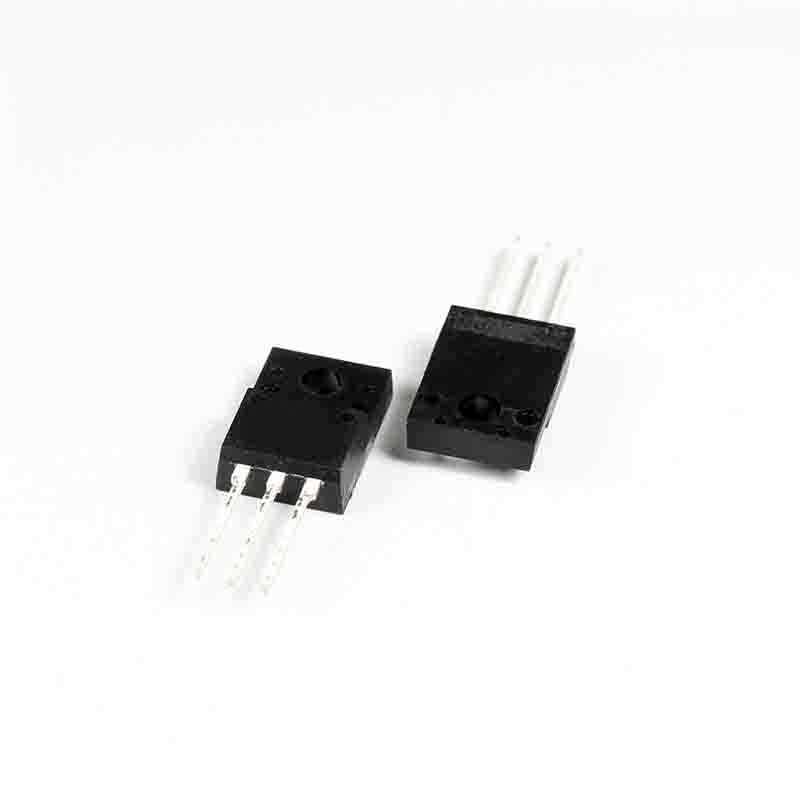

TK34A10N1,S4X TO-220SIS MOSFET N-CH 120V 34A TO-220

Brand: Toshiba Semiconductor and Storage

Product Code: #1686296

Availability:In stock

$3.14 3.14

Qty

Ask about this product
TK34A10N1,S4X DescriptionTK34A10N1,S4X Datasheet
Compare Parts
Part Number TK34A10N1S4X-ND
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25C 34A (Tc)
Rds On (Max) @ Id Vgs 9.5 mOhm @ 17A 10V
Vgs(th) (Max) @ Id 4V @ 500A
Gate Charge (Qg) @ Vgs 38nC @ 10V
Input Capacitance (Ciss) @ Vds 2600pF @ 50V
Power - Max 35W
Mounting Type Through Hole
