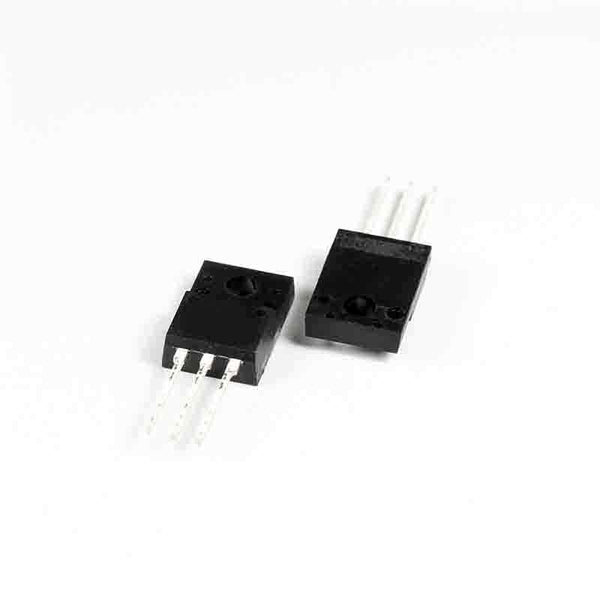

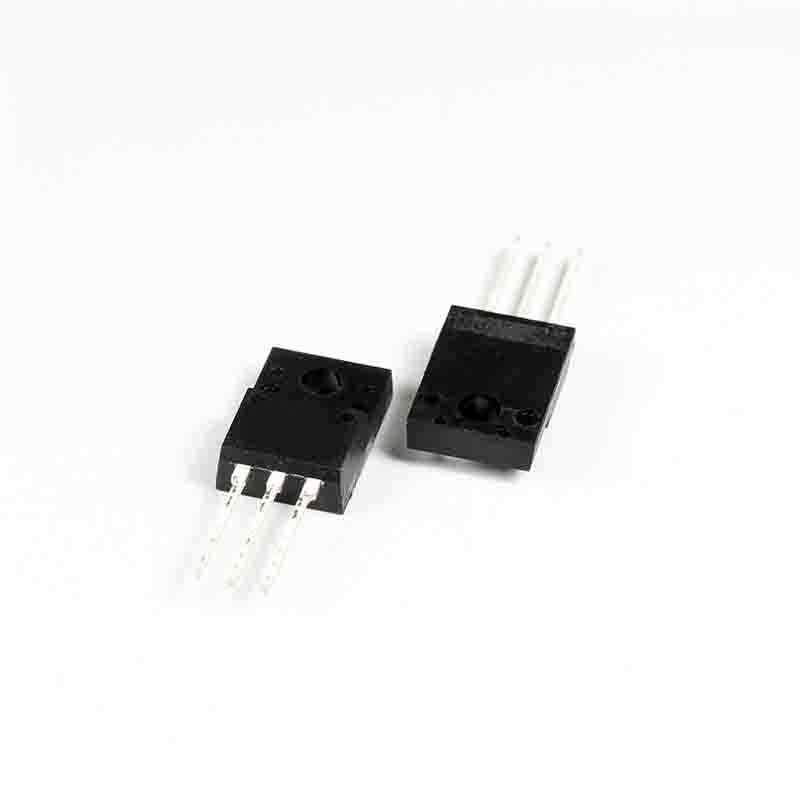

TK30A06N1,S4X TO-220SIS MOSFET N-CH 60V 30A TO-220

Brand: Toshiba Semiconductor and Storage

Product Code: #1674089

Availability:In stock

$2.79 2.79

Qty

Ask about this product
TK30A06N1,S4X DescriptionTK30A06N1,S4X Datasheet
Compare Parts
Part Number TK30A06N1S4X-ND
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25C 30A (Tc)
Rds On (Max) @ Id Vgs 15 mOhm @ 15A 10V
Vgs(th) (Max) @ Id 4V @ 200A
Gate Charge (Qg) @ Vgs 16nC @ 10V
Input Capacitance (Ciss) @ Vds 1050pF @ 30V
Power - Max 25W
Mounting Type Through Hole
