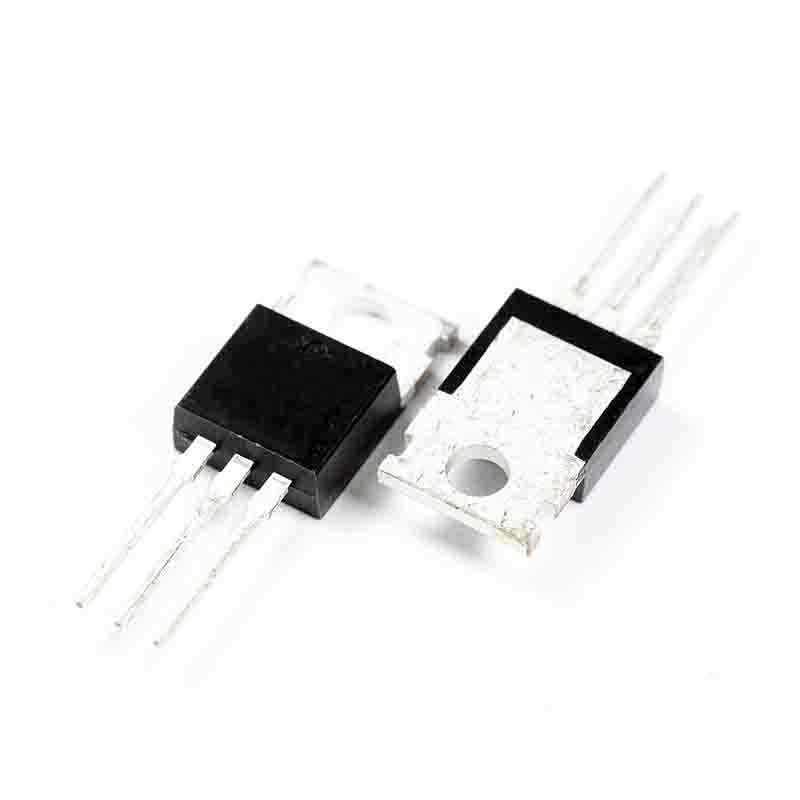

TIP31C TO-220 TRANS NPN EPITAX 100V 3A TO-220

Brand: Fairchild Semiconductor

Product Code: #460568

Availability:In stock

$1.62 1.62

Qty

Ask about this product
TIP31C DescriptionTIP31C Datasheet
Transistor Type NPN
Current - Collector (Ic) (Max) 3A
Voltage - Collector Emitter Breakdown (Max) 100V
Noise Figure (dB Typ @ f) -
Vce Saturation (Max) @ Ib Ic 1.2V @ 375mA 3A
Current - Collector Cutoff (Max) 300?A
Gain -
DC Current Gain (hFE) (Min) @ Ic Vce 10 @ 3A 4V
Power - Max 2W
Frequency - Transition 3MHz
Mounting Type Through Hole
Supplier Device Package TO-220
