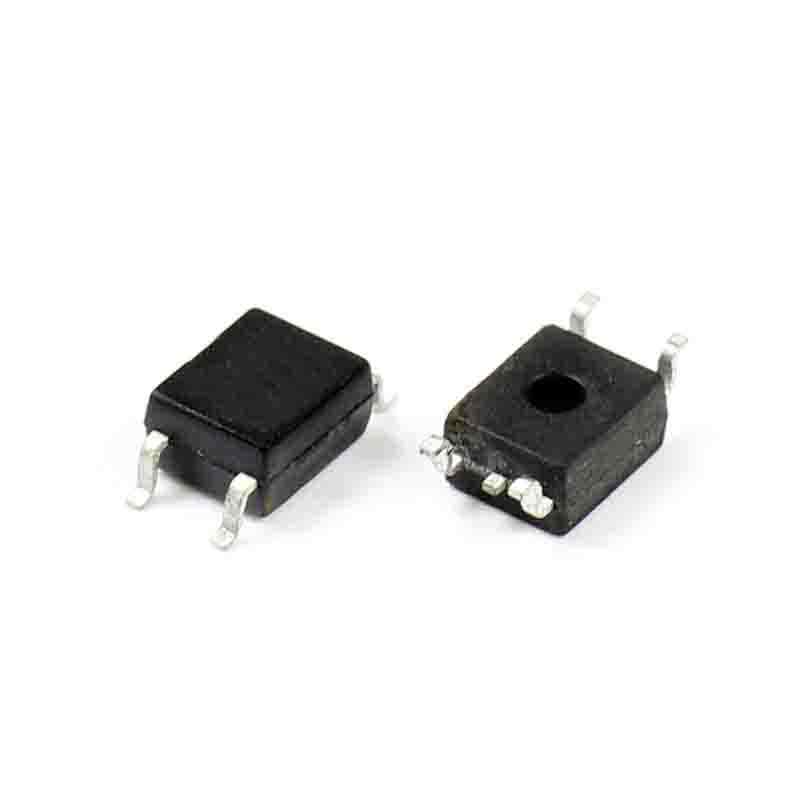

TCLT1010 4-SOP (2.54mm) OPTOISOLATOR 5KV TRANS SOP-6L4

Brand: Vishay Semiconductor Opto Division

Product Code: #1762143

Availability:In stock

$1.52 1.52

Qty

Ask about this product
TCLT1010 DescriptionTCLT1010 Datasheet
Compare Parts
Part Number TCLT1010-ND
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Turn On / Turn Off Time (Typ) 6s 5s
Rise / Fall Time (Typ) 3s 4.7s
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 60mA
Vce Saturation (Max) 300mV
Operating Temperature -55C ~ 110C
Mounting Type Surface Mount
