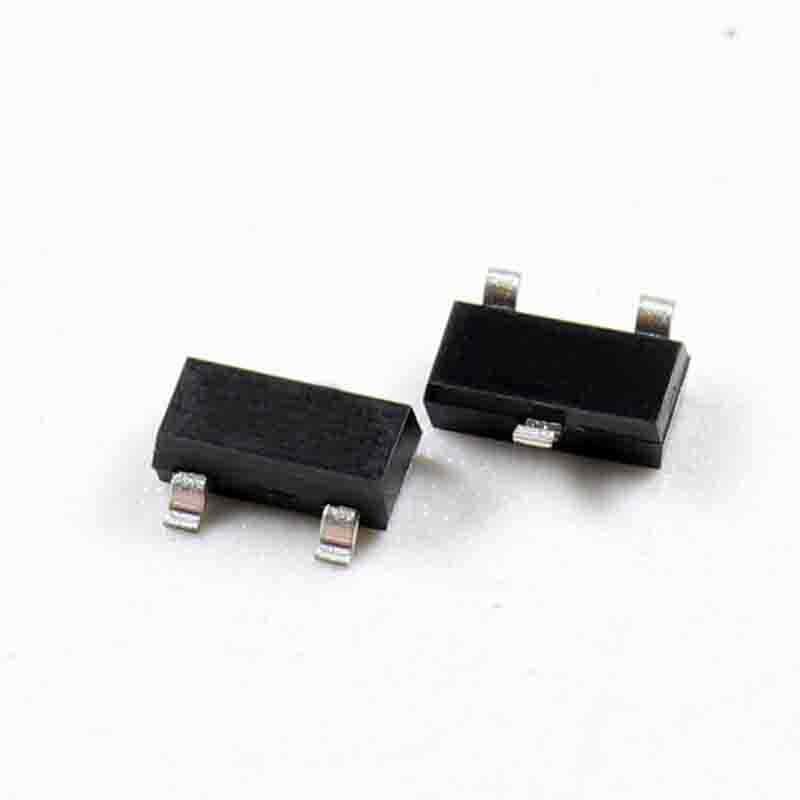

T2N7002AK,LM SOT-23 MOSFET N-CH 60V 0.2A

Brand: Toshiba Semiconductor and Storage

Product Code: #1571923

Availability:In stock

$0.37 0.37

Qty

Ask about this product
T2N7002AK,LM DescriptionT2N7002AK,LM Datasheet
Compare Parts
Part Number T2N7002AKLMTR-ND
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25C 200mA (Ta)
Rds On (Max) @ Id Vgs 3.9 Ohm @ 100mA 10V
Vgs(th) (Max) @ Id 2.1V @ 250A
Gate Charge (Qg) @ Vgs 0.35nC @ 4.5V
Input Capacitance (Ciss) @ Vds 17pF @ 10V
Power - Max 320mW
Mounting Type Surface Mount
