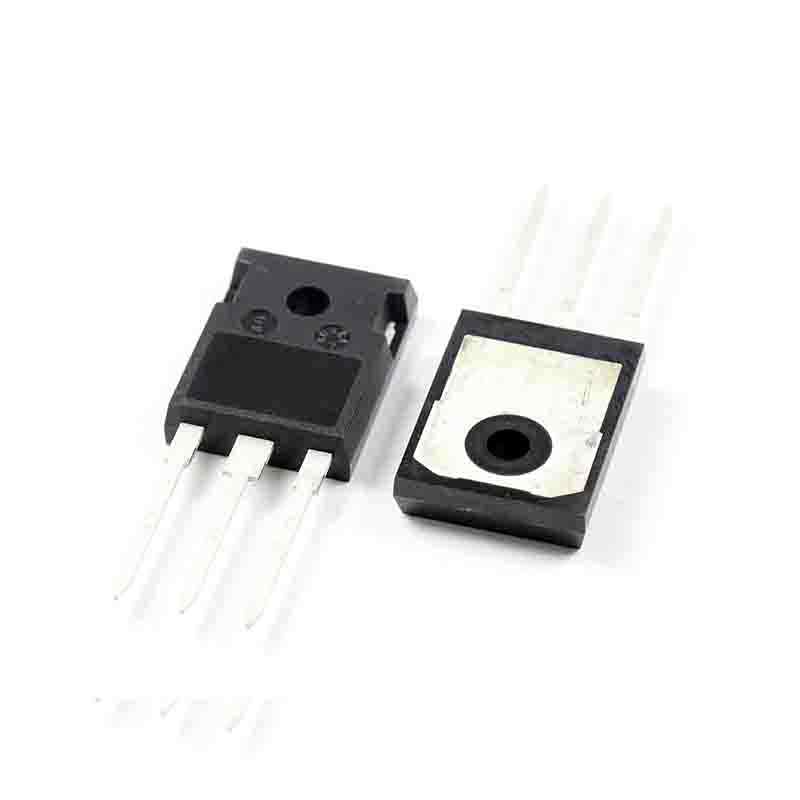

STW25N80K5 TO-247 MOSFET N-CH 800V 19.5A TO247

Brand: STMicroelectronics

Product Code: #1673672

Availability:In stock

$11.78 11.78

Qty

Ask about this product
STW25N80K5 DescriptionSTW25N80K5 Datasheet
Compare Parts
Part Number 497-13659-5-ND
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 800V
Current - Continuous Drain (Id) @ 25C 19.5A (Tc)
Rds On (Max) @ Id Vgs 260 mOhm @ 19.5A 10V
Vgs(th) (Max) @ Id 5V @ 100A
Gate Charge (Qg) @ Vgs 40nC @ 10V
Input Capacitance (Ciss) @ Vds 1600pF @ 100V
Power - Max 250W
Mounting Type Through Hole
