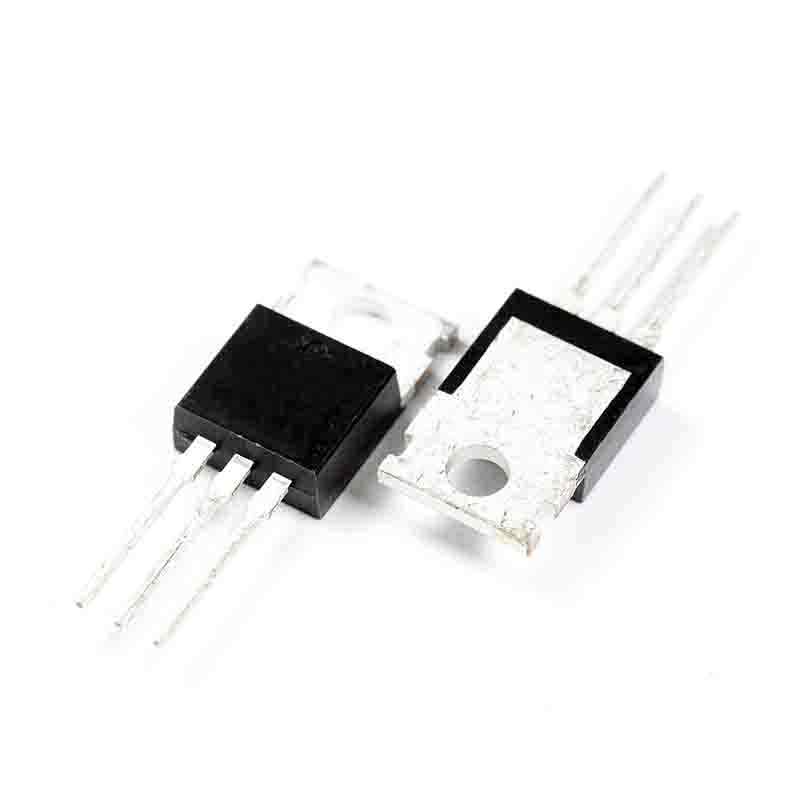

STP57N65M5 TO-220 MOSFET N-CH 650V 42A TO-220

Brand: STMicroelectronics

Product Code: #511589

Availability:Out of stock

STP57N65M5 DescriptionSTP57N65M5 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 650V
Current - Continuous Drain (Id) @ 25 C 42A
Rds On (Max) @ Id Vgs 63 mOhm @ 21A 10V
Vgs(th) (Max) @ Id 5V @ 250?A
Gate Charge (Qg) @ Vgs 98nC @ 10V
Input Capacitance (Ciss) @ Vds 4200pF @ 100V
Power - Max 250W
Mounting Type Through Hole
Supplier Device Package TO-220
