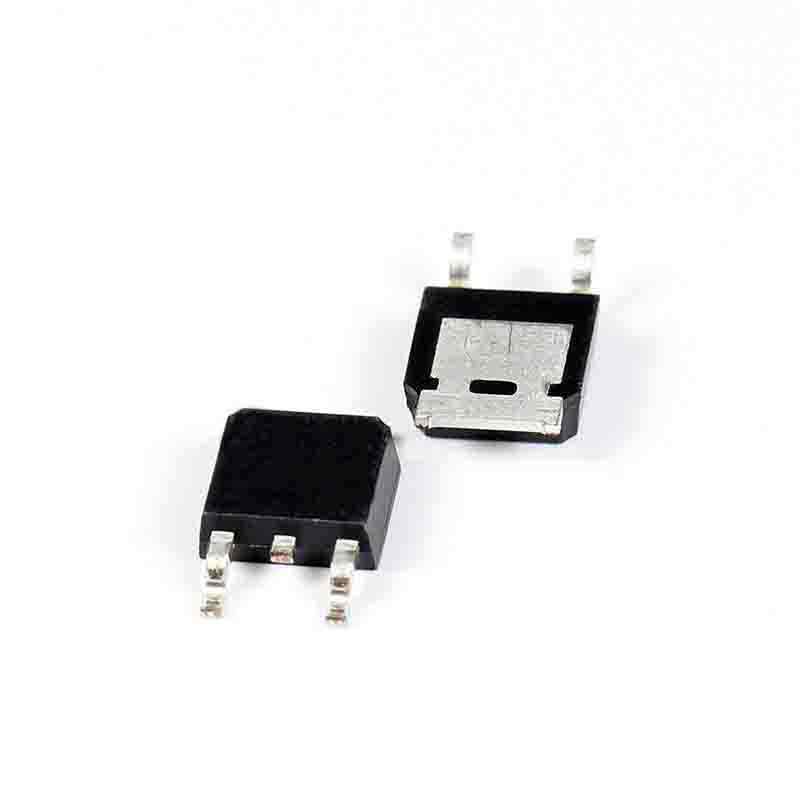

SPD30P06P G PG-TO252-3 MOSFET P-CH 60V 30A TO252-3

Brand: Infineon Technologies

Product Code: #854751

Availability:In stock

$3.58 3.58

Qty

Ask about this product
SPD30P06P G DescriptionSPD30P06P G Datasheet
FET Type MOSFET P-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 30A
Rds On (Max) @ Id Vgs 75 mOhm @ 21.5A 10V
Vgs(th) (Max) @ Id 4V @ 1.7mA
Gate Charge (Qg) @ Vgs 48nC @ 10V
Input Capacitance (Ciss) @ Vds 1535pF @ 25V
Power - Max 125W
Mounting Type Surface Mount
Supplier Device Package PG-TO252-3
