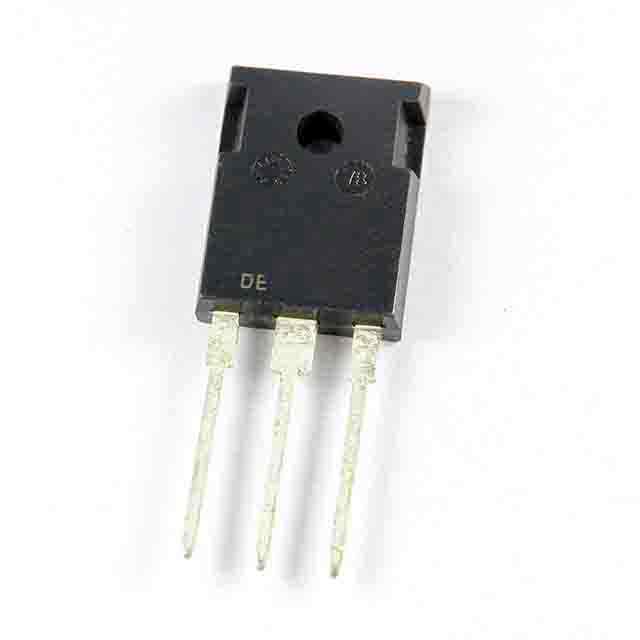

SKW15N60 PG-TO247-3 IGBT NPT 600V 31A 139W TO247-3

Brand: Infineon Technologies

Product Code: #450594

Availability:In stock

$7.59 7.59

Qty

Ask about this product
SKW15N60 DescriptionSKW15N60 Datasheet
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 600V
Vce(on) (Max) @ Vge Ic 2.4V @ 15V 15A
Current - Collector (Ic) (Max) 31A
Current - Collector Pulsed (Icm) 62A
Power - Max 139W
Switching Energy 570?J
Input Type Standard
Gate Charge 76nC
Td (on/off) @ 25C 32ns/234ns
Test Condition 400V 15A 21 Ohm 15V
Reverse Recovery Time (trr) 279ns
Mounting Type Through Hole
Supplier Device Package PG-TO247-3
