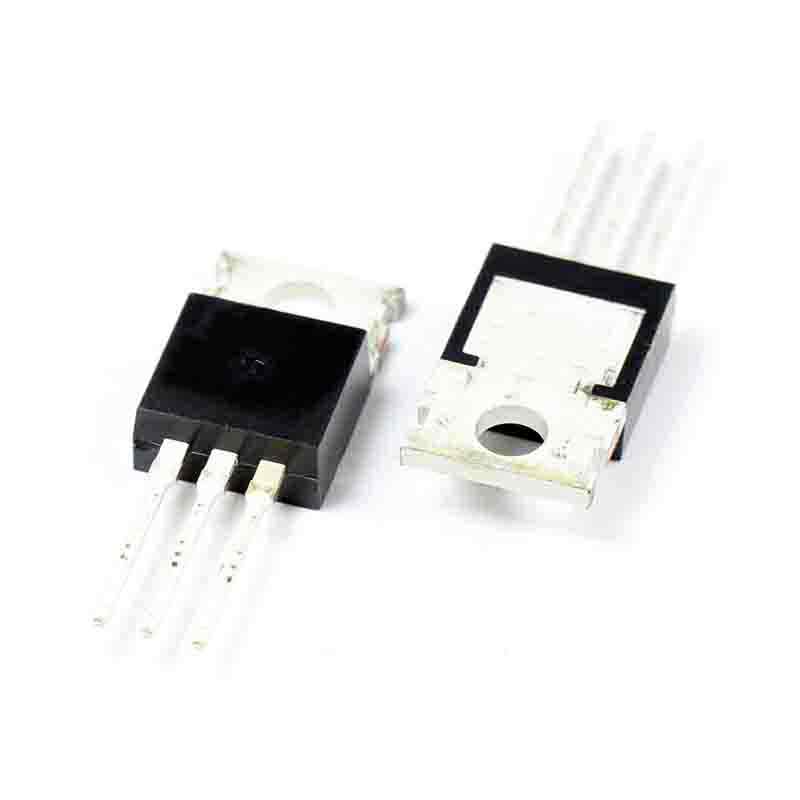

S8010RTP TO-220AB SCR 800V 10A TO220 NON-ISO

Brand: Littelfuse Inc

Product Code: #1540382

Availability:Out of stock

S8010RTP DescriptionS8010RTP Datasheet
Compare Parts
Part Number S8010RTP-ND
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 15mA
Voltage - On State (Vtm) (Max) 1.6V
Current - On State (It (AV)) (Max) 6.4A
Current - On State (It (RMS)) (Max) 10A
Current - Hold (Ih) (Max) 30mA
Current - Off State (Max) 10A
Current - Non Rep. Surge 50 60Hz (Itsm) 83A 100A
SCR Type Standard Recovery
Operating Temperature -40C ~ 125C
Mounting Type Through Hole
