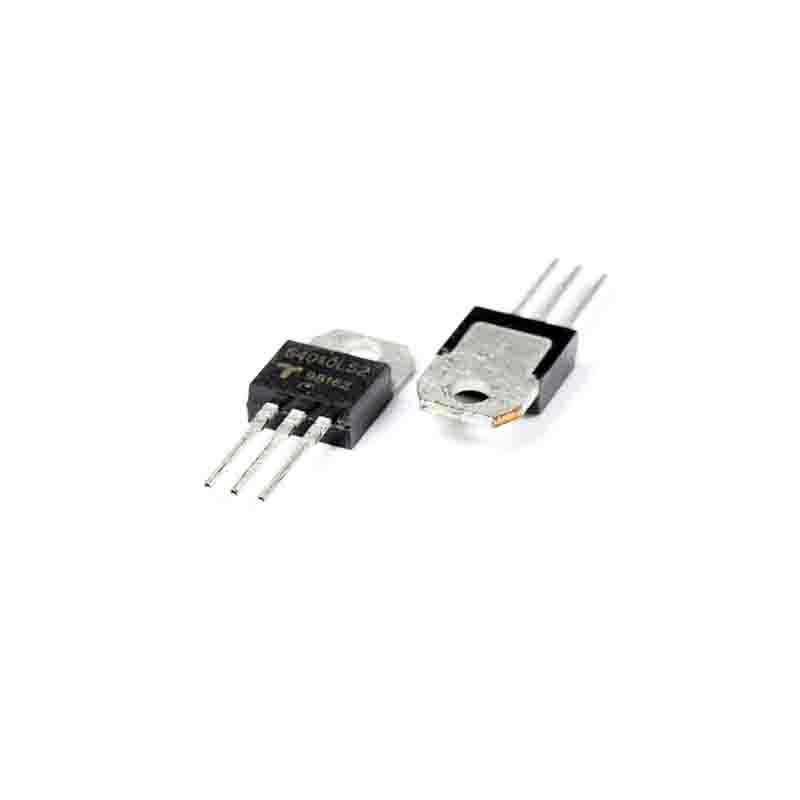

S4010LS2 TO-220 Isolated Tab SCR SENSITIVE GATE 10.0A 400V

Brand: Littelfuse Inc

Product Code: #354948

Availability:Out of stock

S4010LS2 DescriptionS4010LS2 Datasheet
SCR Type Sensitive Gate
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Max) 800mV
Voltage - On State (Vtm) (Max) 1.6V
Current - On State (It (AV)) (Max) 6.4A
Current - On State (It (RMS)) (Max) 10A
Current - Gate Trigger (Igt) (Max) 200?A
Current - Hold (Ih) (Max) 6mA
Current - Off State (Max) 5?A
Current - Non Rep. Surge 50 60Hz (Itsm) 83A 100A
Operating Temperature -40C ~ 110C
Mounting Type Through Hole
Supplier Device Package TO-220 Isolated Tab
