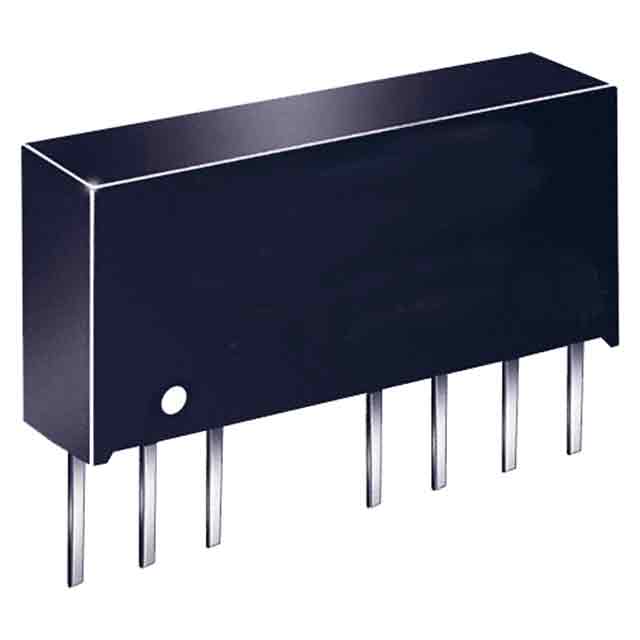

RS-1205S 8-SIP Module (7 Leads) CONV DC/DC 2W SNGL 5V OUT SIP8

Brand: Recom Power

Product Code: #345109

Availability:Out of stock

RS-1205S DescriptionRS-1205S Datasheet
Type Isolated
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 400mA
Power (Watts) - Manufacture Series 2W
Voltage - Isolation 1kV (1000V)
Features With Remote On/Off
Mounting Type Through Hole
Size / Dimension 0.86\" L x 0.36\" W x 0.44\" H (21.8mm x 9.2mm x 11.1mm)
Operating Temperature -45C ~ 85C
Efficiency 75%
