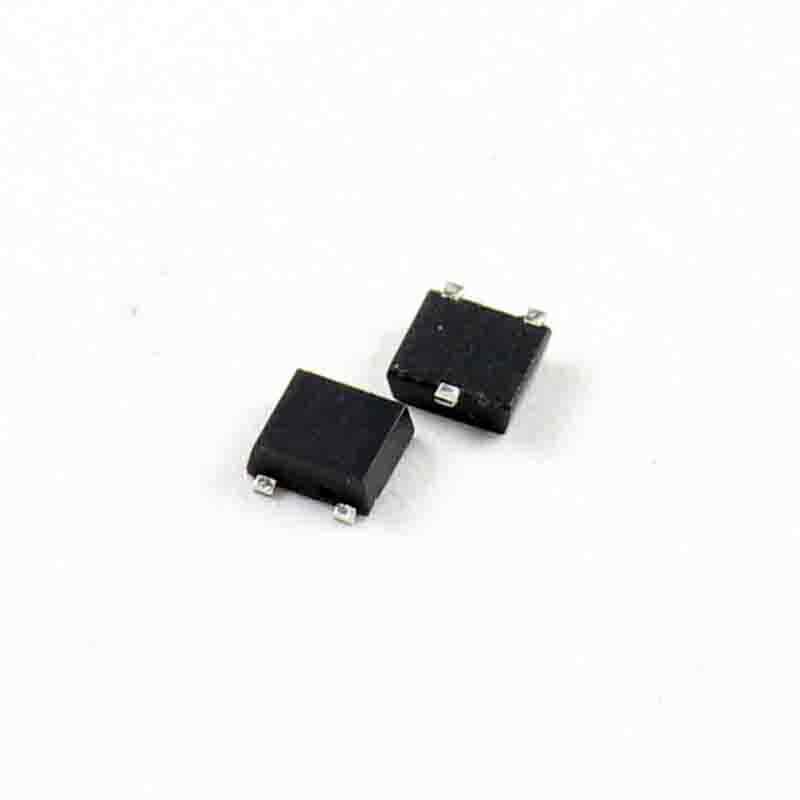

RAF040P01TCL TUMT3 MOSFET P-CH 12V 4A TUMT3

Brand: Rohm Semiconductor

Product Code: #1569226

Availability:In stock

$1.03 1.03

Qty

Ask about this product
RAF040P01TCL DescriptionRAF040P01TCL Datasheet
Compare Parts
Part Number RAF040P01TCLTR-ND
FET Type MOSFET P-Channel Metal Oxide
FET Feature Logic Level Gate 1.5V Drive
Drain to Source Voltage (Vdss) 12V
Current - Continuous Drain (Id) @ 25C 4A (Ta)
Rds On (Max) @ Id Vgs 30 mOhm @ 4A 4.5V
Vgs(th) (Max) @ Id 1V @ 1mA
Gate Charge (Qg) @ Vgs 37nC @ 4.5V
Input Capacitance (Ciss) @ Vds 4000pF @ 6V
Power - Max 800mW
Mounting Type Surface Mount
