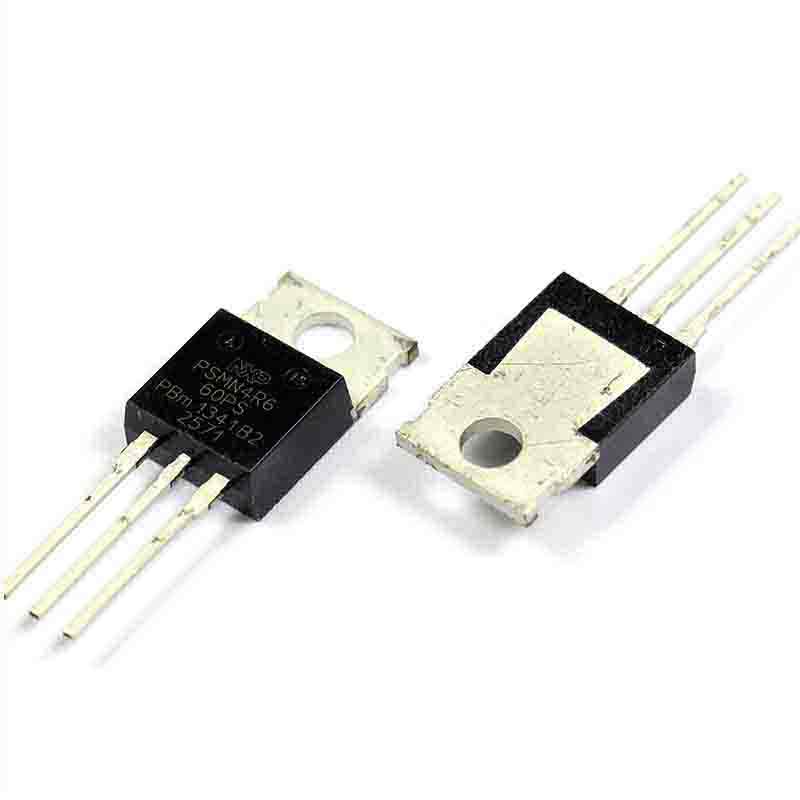

PSMN4R6-60PS,127 TO-220AB MOSFET N-CH 60V TO220AB

Brand: NXP Semiconductors

Product Code: #462012

Availability:In stock

$3.54 3.54

Qty

Ask about this product
PSMN4R6-60PS,127 DescriptionPSMN4R6-60PS,127 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 100A
Rds On (Max) @ Id Vgs 4.6 mOhm @ 25A 10V
Vgs(th) (Max) @ Id 4V @ 1mA
Gate Charge (Qg) @ Vgs 70.8nC @ 10V
Input Capacitance (Ciss) @ Vds 4426pF @ 30V
Power - Max 211W
Mounting Type Through Hole
Supplier Device Package TO-220AB
