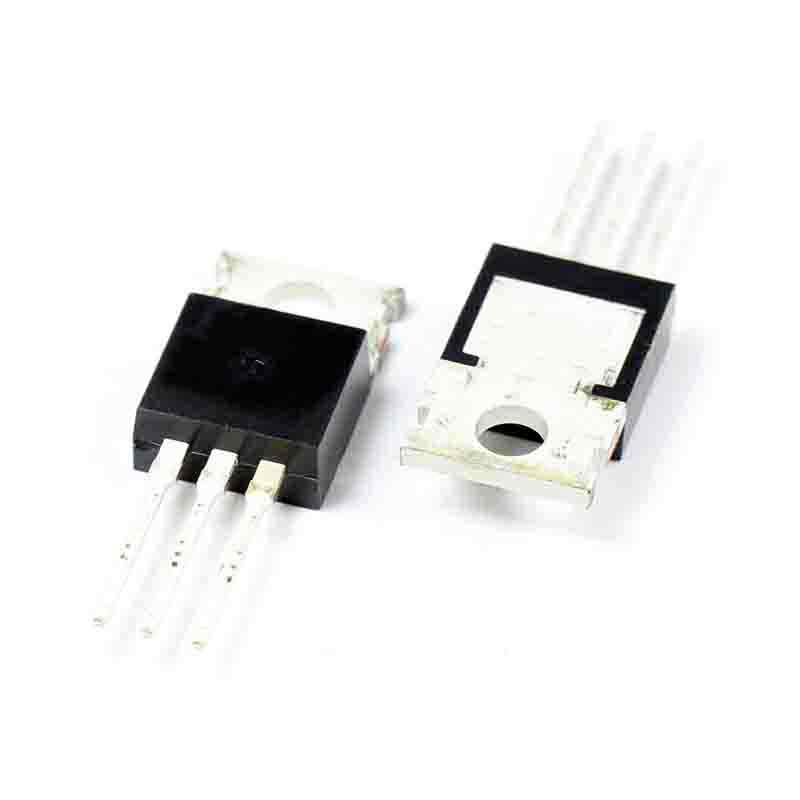

NTP5412NG TO-220AB MOSFET N-CH 60V 60A TO-220AB

Brand: ON Semiconductor

Product Code: #877671

Availability:Out of stock

NTP5412NG DescriptionNTP5412NG Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 60A
Rds On (Max) @ Id Vgs 14 mOhm @ 30A 10V
Vgs(th) (Max) @ Id 4V @ 250?A
Gate Charge (Qg) @ Vgs 85nC @ 0V
Input Capacitance (Ciss) @ Vds 3220pF @ 25V
Power - Max 125W
Mounting Type Through Hole
Supplier Device Package TO-220AB
