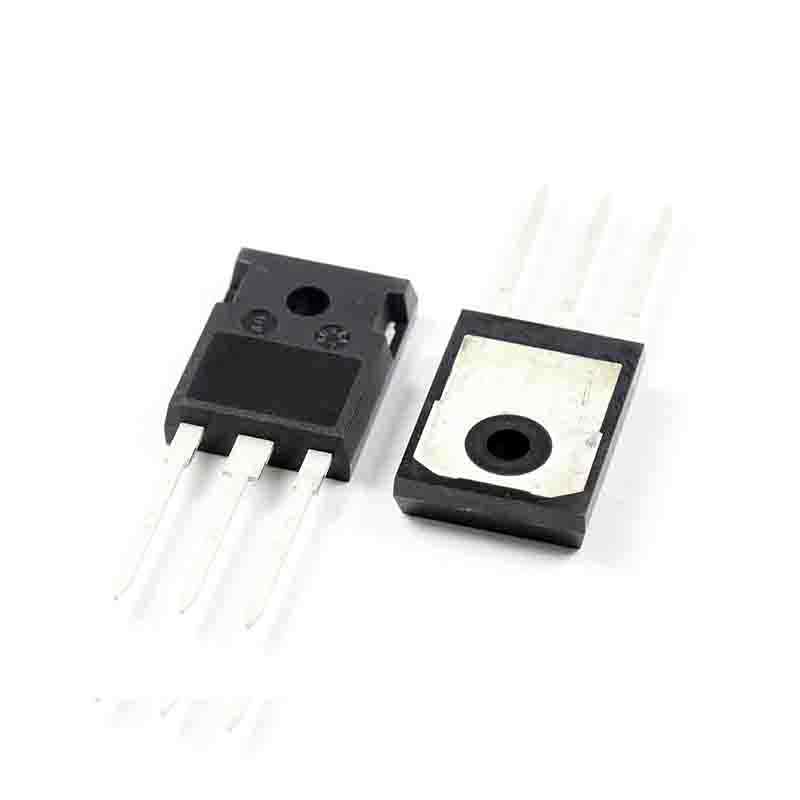

IXTH40N50L2 TO-247 MOSFET N-CH 40A 500V TO-247

Brand: IXYS

Product Code: #408029

Availability:In stock

$13.80 13.80

Qty

Ask about this product
IXTH40N50L2 DescriptionIXTH40N50L2 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 500V
Current - Continuous Drain (Id) @ 25 C 40A
Rds On (Max) @ Id Vgs 170 mOhm @ 20A 10V
Vgs(th) (Max) @ Id 4.5V @ 250?A
Gate Charge (Qg) @ Vgs 320nC @ 10V
Input Capacitance (Ciss) @ Vds 10400pF @ 25V
Power - Max 540W
Mounting Type Through Hole
Supplier Device Package TO-247
