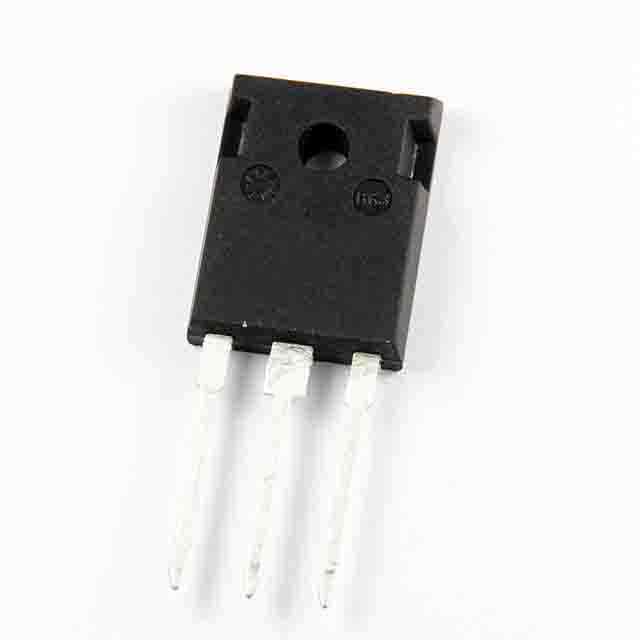

IXFB50N80Q2 PLUS264? MOSFET N-CH 800V 50A PLUS264

Brand: IXYS

Product Code: #611983

Availability:In stock

$37.76 37.76

Qty

Ask about this product
IXFB50N80Q2 DescriptionIXFB50N80Q2 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 800V
Current - Continuous Drain (Id) @ 25 C 50A
Rds On (Max) @ Id Vgs 160 mOhm @ 500mA 10V
Vgs(th) (Max) @ Id 5.5V @ 8mA
Gate Charge (Qg) @ Vgs 260nC @ 10V
Input Capacitance (Ciss) @ Vds 7200pF @ 25V
Power - Max 890W
Mounting Type Through Hole
Supplier Device Package PLUS264?
