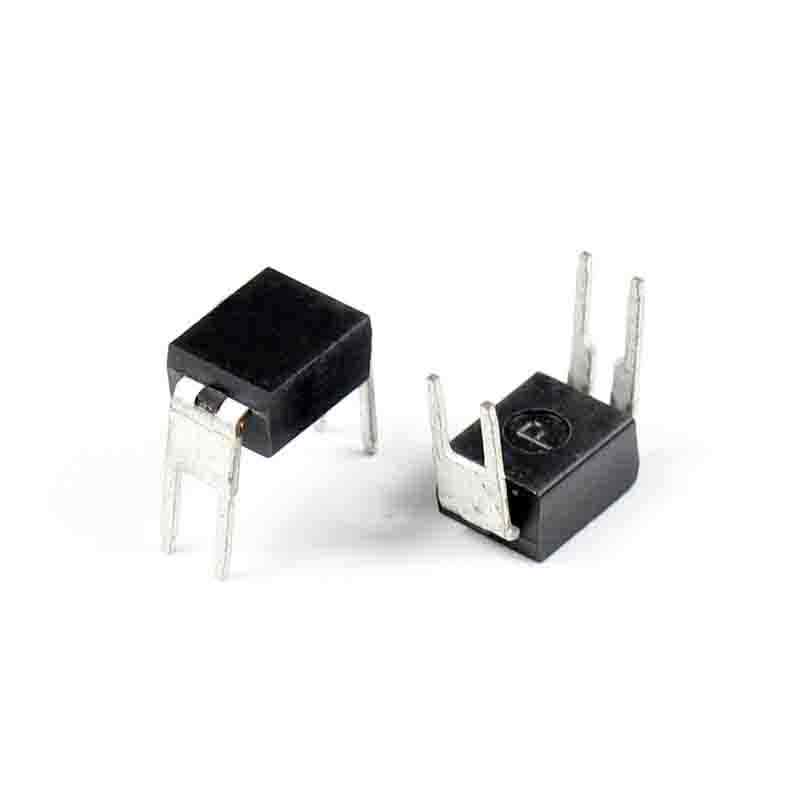

IRFD110 4-DIP, Hexdip, HVMDIP MOSFET N-CH 100V 1A 4-DIP

Brand: Vishay Siliconix

Product Code: #693923

Availability:In stock

$3.75 3.75

Qty

Ask about this product
IRFD110 DescriptionIRFD110 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25 C 1A
Rds On (Max) @ Id Vgs 540 mOhm @ 600mA 10V
Vgs(th) (Max) @ Id 4V @ 250?A
Gate Charge (Qg) @ Vgs 8.3nC @ 10V
Input Capacitance (Ciss) @ Vds 180pF @ 25V
Power - Max 1.3W
Mounting Type Through Hole
Supplier Device Package 4-DIP Hexdip HVMDIP
