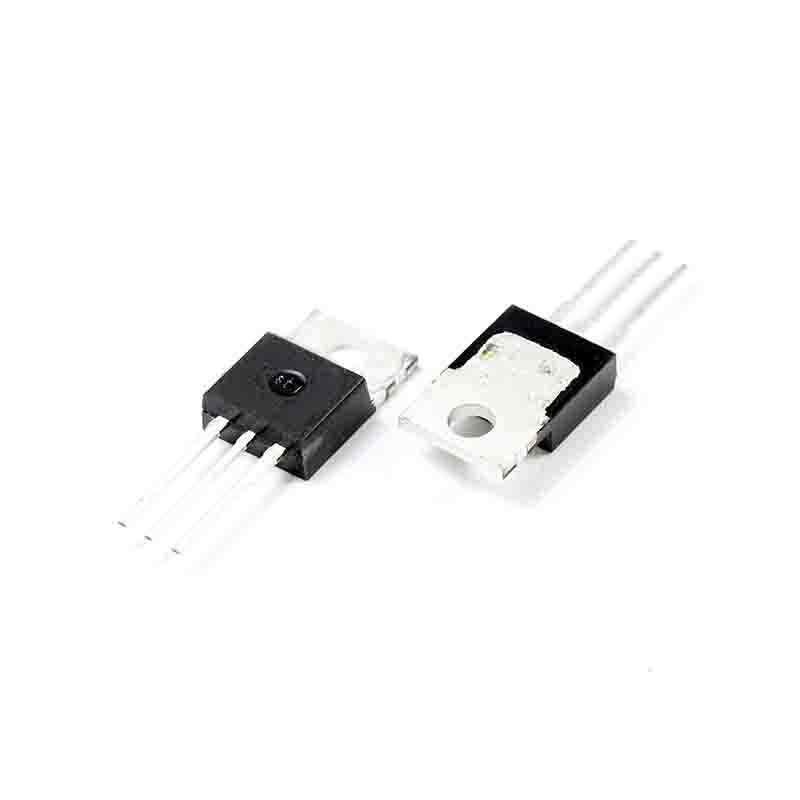

IPP60R125CP PG-TO220-3 MOSFET N-CH 650V 25A TO-220

Brand: Infineon Technologies

Product Code: #856069

Availability:In stock

$7.67 7.67

Qty

Ask about this product
IPP60R125CP DescriptionIPP60R125CP Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 650V
Current - Continuous Drain (Id) @ 25 C 25A
Rds On (Max) @ Id Vgs 125 mOhm @ 16A 10V
Vgs(th) (Max) @ Id 3.5V @ 1.1mA
Gate Charge (Qg) @ Vgs 70nC @ 10V
Input Capacitance (Ciss) @ Vds 2500pF @ 100V
Power - Max 208W
Mounting Type Through Hole
Supplier Device Package PG-TO220-3
