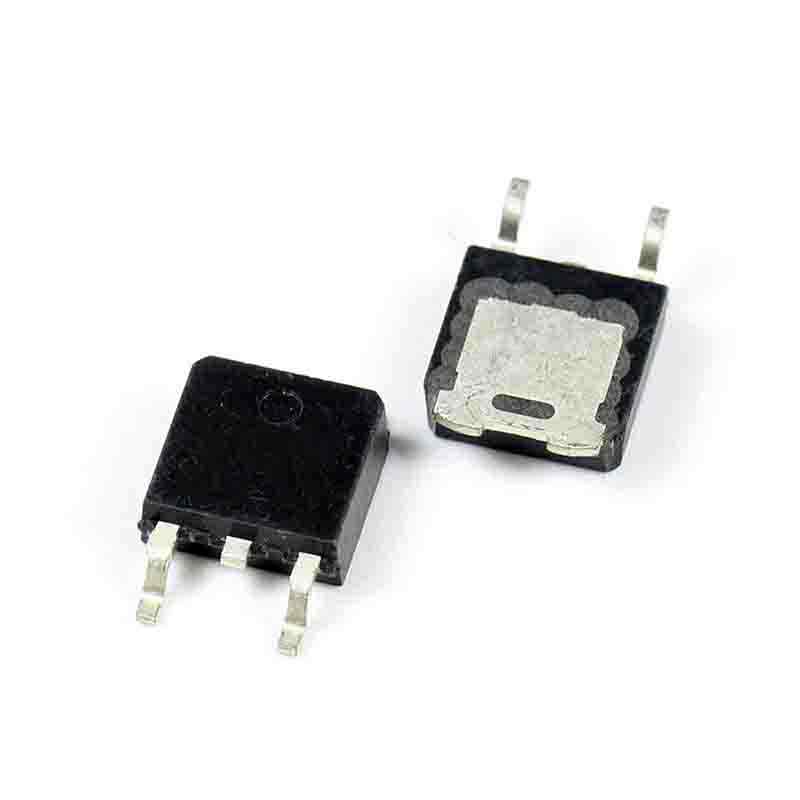

IPD100N06S4-03 PG-TO252-3-11 MOSFET N-CH 60V 100A TO252-3-11

Brand: Infineon Technologies

Product Code: #854029

Availability:In stock

$2.33 2.33

Qty

Ask about this product
IPD100N06S4-03 DescriptionIPD100N06S4-03 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 100A
Rds On (Max) @ Id Vgs 3.5 mOhm @ 100A 10V
Vgs(th) (Max) @ Id 4V @ 90?A
Gate Charge (Qg) @ Vgs 128nC @ 10V
Input Capacitance (Ciss) @ Vds 10400pF @ 25V
Power - Max 150W
Mounting Type Surface Mount
Supplier Device Package PG-TO252-3-11
