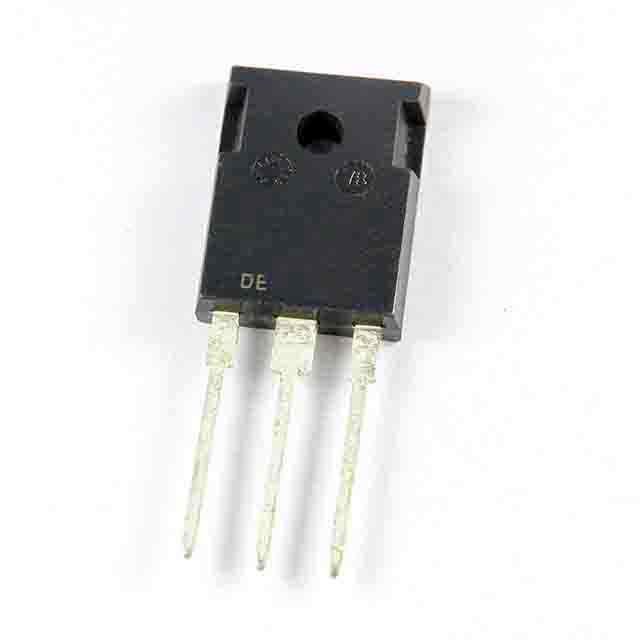

IHW30N135R3FKSA1 PG-TO247-3 IGBT 1350V 60A 349W TO247-3

Brand: Infineon Technologies

Product Code: #1539672

Availability:Out of stock

IHW30N135R3FKSA1 DescriptionIHW30N135R3FKSA1 Datasheet
Compare Parts
Part Number IHW30N135R3FKSA1-ND
IGBT Type Trench
Voltage - Collector Emitter Breakdown (Max) 1350V
Current - Collector (Ic) (Max) 60A
Current - Collector Pulsed (Icm) 90A
Vce(on) (Max) @ Vge Ic 1.85V @ 15V 30A
Power - Max 349W
Switching Energy 1.93mJ (off)
Input Type Standard
Gate Charge 263nC
Td (on/off) @ 25C -/337ns
Test Condition 600V 30A 10 Ohm 15V
Reverse Recovery Time (trr) -
Mounting Type Through Hole
