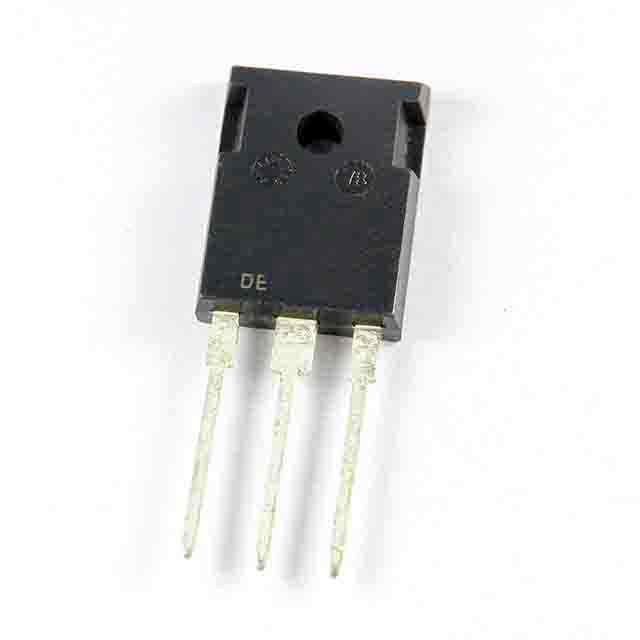

IHW25N120R2 PG-TO247-3 IGBT 1200V 50A 365W TO247-3

Brand: Infineon Technologies

Product Code: #450593

Availability:In stock

$7.57 7.57

Qty

Ask about this product
IHW25N120R2 DescriptionIHW25N120R2 Datasheet
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 1200V
Vce(on) (Max) @ Vge Ic 1.8V @ 15V 25A
Current - Collector (Ic) (Max) 50A
Current - Collector Pulsed (Icm) 75A
Power - Max 365W
Switching Energy 1.59mJ
Input Type Standard
Gate Charge 60.7nC
Td (on/off) @ 25C -/324ns
Test Condition 600V 25A 10 Ohm 15V
Reverse Recovery Time (trr) -
Mounting Type Through Hole
Supplier Device Package PG-TO247-3
