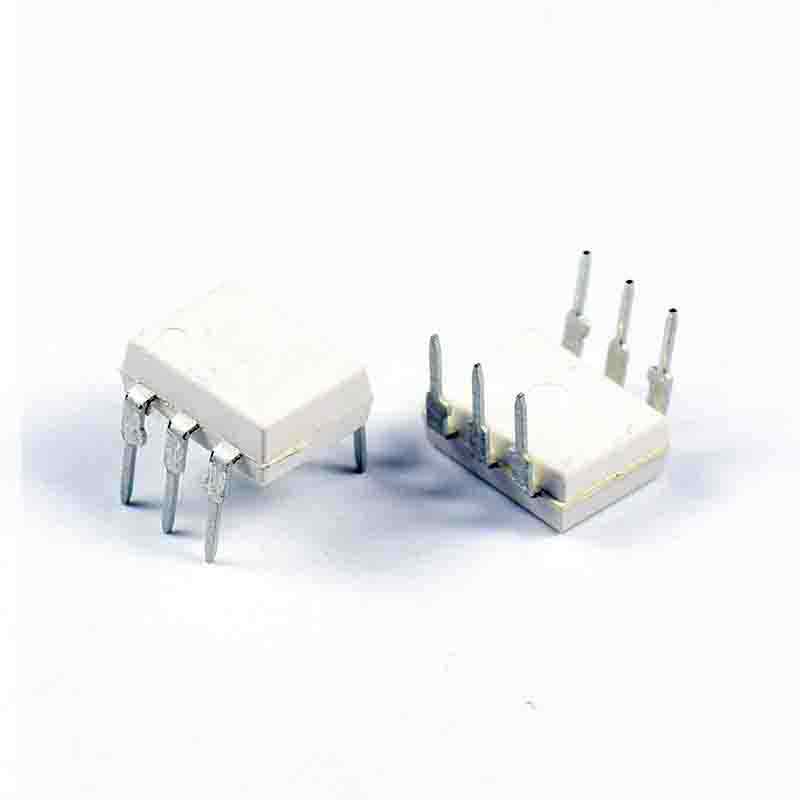

H11AA1-X006 6-DIP OPTOISO 5.3KV TRANS W/BASE 6DIP

Brand: Vishay Semiconductor Opto Division

Product Code: #1710157

Availability:Out of stock

H11AA1-X006 DescriptionH11AA1-X006 Datasheet
Compare Parts
Part Number H11AA1-X006-ND
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 20% @ 10mA
Current Transfer Ratio (Max) -
Turn On / Turn Off Time (Typ) -
Rise / Fall Time (Typ) -
Input Type AC DC
Output Type Transistor with Base
Voltage - Output (Max) 30V
Current - Output / Channel -
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 60mA
Vce Saturation (Max) 400mV
Operating Temperature -55C ~ 100C
Mounting Type Through Hole
