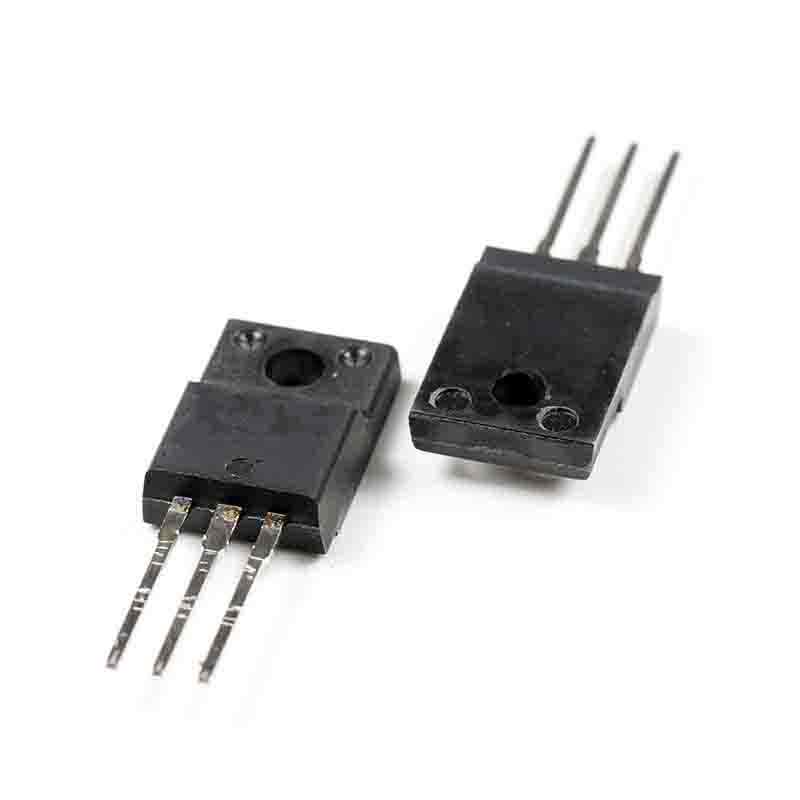

FQPF2N80 TO-220F MOSFET N-CH 800V 1.5A TO-220F

Brand: Fairchild Semiconductor

Product Code: #849760

Availability:In stock

$2.10 2.10

Qty

Ask about this product
FQPF2N80 DescriptionFQPF2N80 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 800V
Current - Continuous Drain (Id) @ 25 C 1.5A
Rds On (Max) @ Id Vgs 6.3 Ohm @ 750mA 10V
Vgs(th) (Max) @ Id 5V @ 250?A
Gate Charge (Qg) @ Vgs 15nC @ 10V
Input Capacitance (Ciss) @ Vds 550pF @ 25V
Power - Max 35W
Mounting Type Through Hole
Supplier Device Package TO-220F
