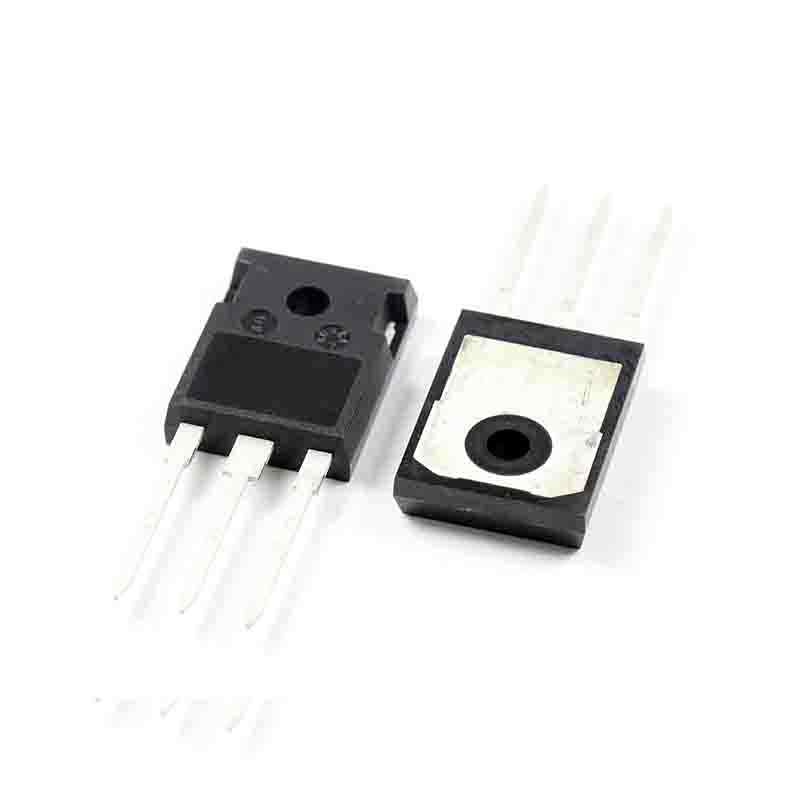

FGH40N6S2 TO-247 IGBT N-CH SMPS 600V 75A TO247

Brand: Fairchild Semiconductor

Product Code: #451028

Availability:In stock

$6.97 6.97

Qty

Ask about this product
FGH40N6S2 DescriptionFGH40N6S2 Datasheet
IGBT Type -
Voltage - Collector Emitter Breakdown (Max) 600V
Vce(on) (Max) @ Vge Ic 2.7V @ 15V 20A
Current - Collector (Ic) (Max) 75A
Current - Collector Pulsed (Icm) 180A
Power - Max 290W
Switching Energy 115?J (on) 195?J (off)
Input Type Standard
Gate Charge 35nC
Td (on/off) @ 25C 8ns/35ns
Test Condition 390V 20A 3 Ohm 15V
Reverse Recovery Time (trr) -
Mounting Type Through Hole
Supplier Device Package TO-247
