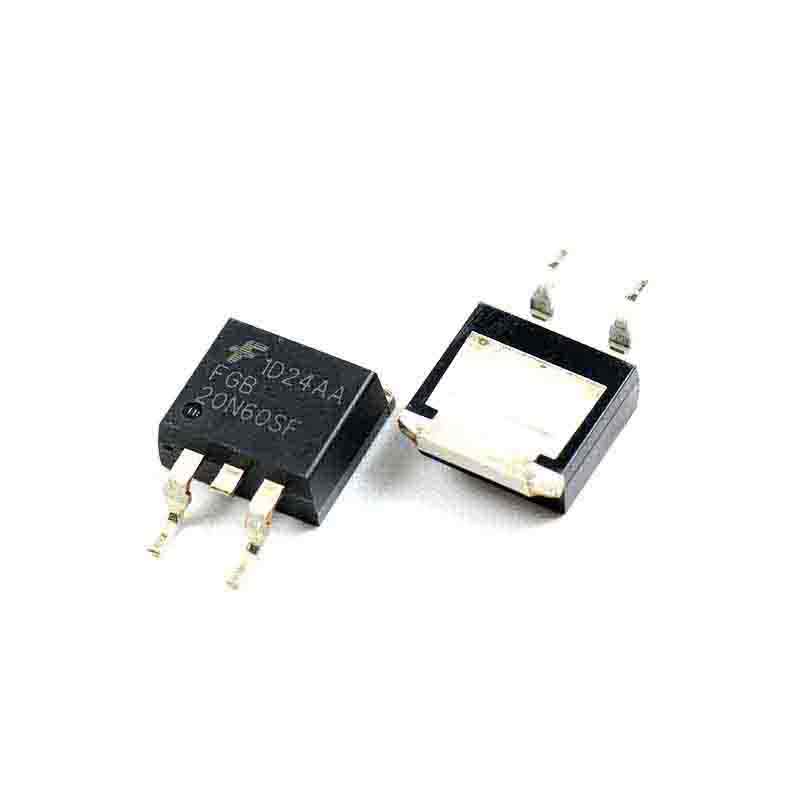

FGB20N60SF TO-263 (D2Pak) IGBT 600V 40A 208W D2PAK

Brand: Fairchild Semiconductor

Product Code: #450324

Availability:In stock

$4.72 4.72

Qty

Ask about this product
FGB20N60SF DescriptionFGB20N60SF Datasheet
IGBT Type Field Stop
Voltage - Collector Emitter Breakdown (Max) 600V
Vce(on) (Max) @ Vge Ic 2.8V @ 15V 20A
Current - Collector (Ic) (Max) 40A
Current - Collector Pulsed (Icm) 60A
Power - Max 208W
Switching Energy 530?J
Input Type Standard
Gate Charge 65nC
Td (on/off) @ 25C 13ns/90ns
Test Condition 400V 20A 10 Ohm 15V
Reverse Recovery Time (trr) -
Mounting Type Surface Mount
Supplier Device Package TO-263 (D2Pak)
