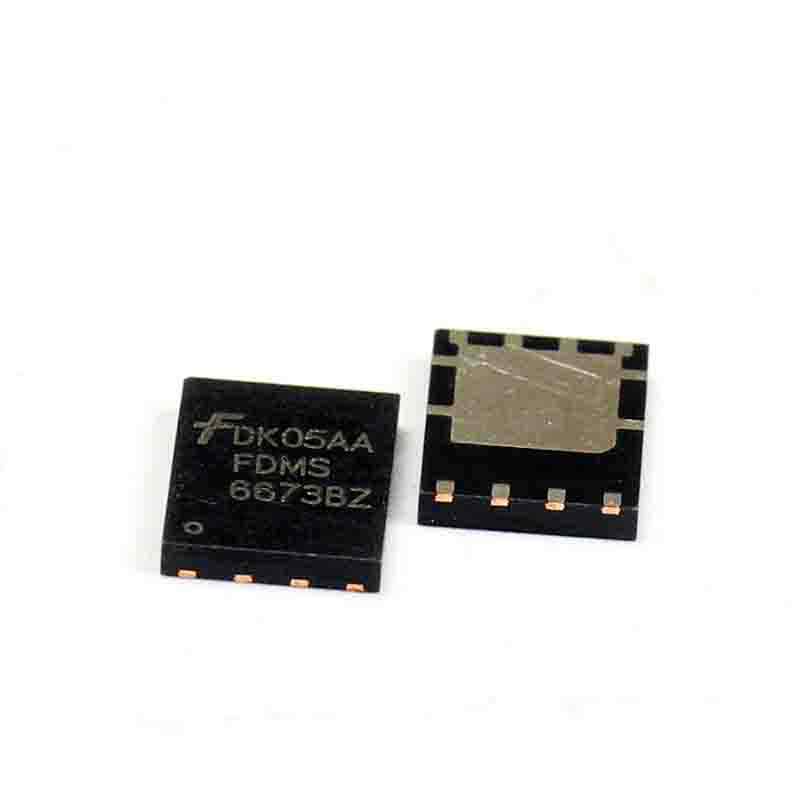

FDMS6673BZ Power56 MOSFET P-CH 30V 15.2A POWER56

Brand: Fairchild Semiconductor

Product Code: #509727

Availability:In stock

$2.96 2.96

Qty

Ask about this product
FDMS6673BZ DescriptionFDMS6673BZ Datasheet
FET Type MOSFET P-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 15.2A
Rds On (Max) @ Id Vgs 6.8 mOhm @ 15.2A 10V
Vgs(th) (Max) @ Id 3V @ 250?A
Gate Charge (Qg) @ Vgs 130nC @ 10V
Input Capacitance (Ciss) @ Vds 5915pF @ 15V
Power - Max 2.5W
Mounting Type Surface Mount
Supplier Device Package Power56
