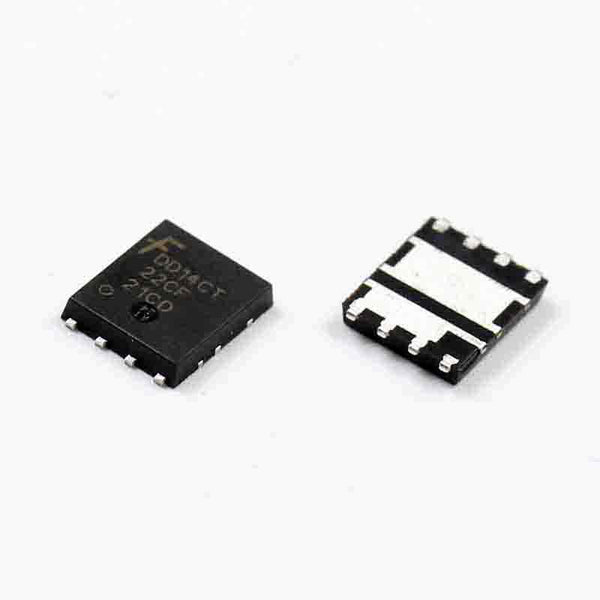

FDMS3668S 8-PQFN (5x6) MOSFET N-CH 30V DUAL 8-PQFN

Brand: Fairchild Semiconductor

Product Code: #354453

Availability:In stock

$2.55 2.55

Qty

Ask about this product
FDMS3668S DescriptionFDMS3668S Datasheet
FET Type 2 N-Channel (Dual) Asymmetrical
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 13A 18A
Rds On (Max) @ Id Vgs 8 mOhm @ 13A 10V
Vgs(th) (Max) @ Id 2.7V @ 250?A
Gate Charge (Qg) @ Vgs 29nC @ 10V
Input Capacitance (Ciss) @ Vds 1765pF @ 15V
Power - Max 1W
Mounting Type Surface Mount
Supplier Device Package 8-PQFN (5x6)
