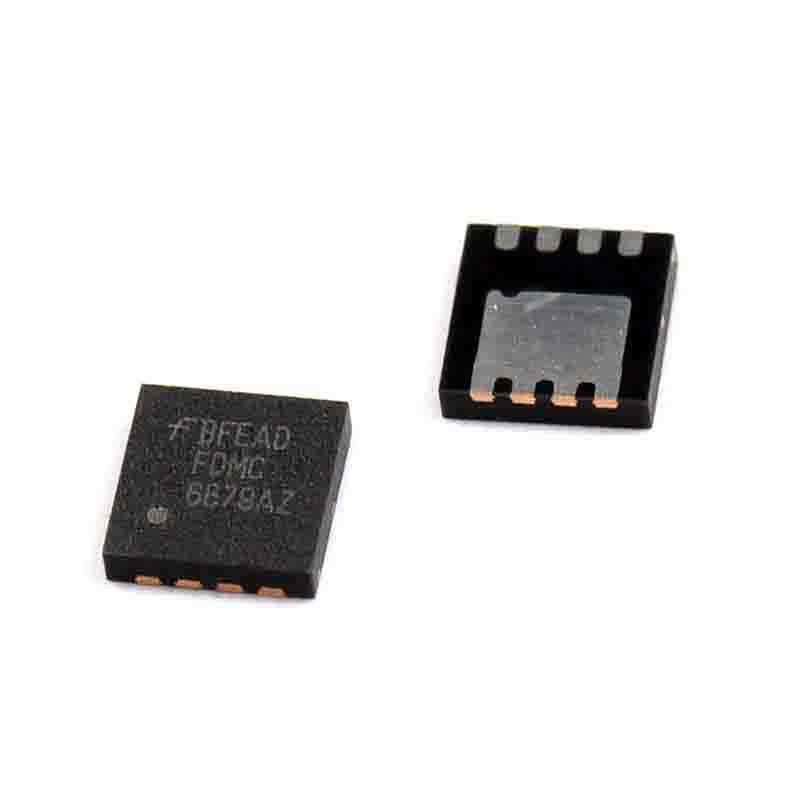

FDMC6679AZ Power33 MOSFET P-CH 30V POWER33

Brand: Fairchild Semiconductor

Product Code: #508633

Availability:In stock

$2.13 2.13

Qty

Ask about this product
FDMC6679AZ DescriptionFDMC6679AZ Datasheet
FET Type MOSFET P-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 11.5A
Rds On (Max) @ Id Vgs 10 mOhm @ 11.5A 10V
Vgs(th) (Max) @ Id 3V @ 250?A
Gate Charge (Qg) @ Vgs 91nC @ 10V
Input Capacitance (Ciss) @ Vds 3970pF @ 15V
Power - Max 2.3W
Mounting Type Surface Mount
Supplier Device Package Power33
