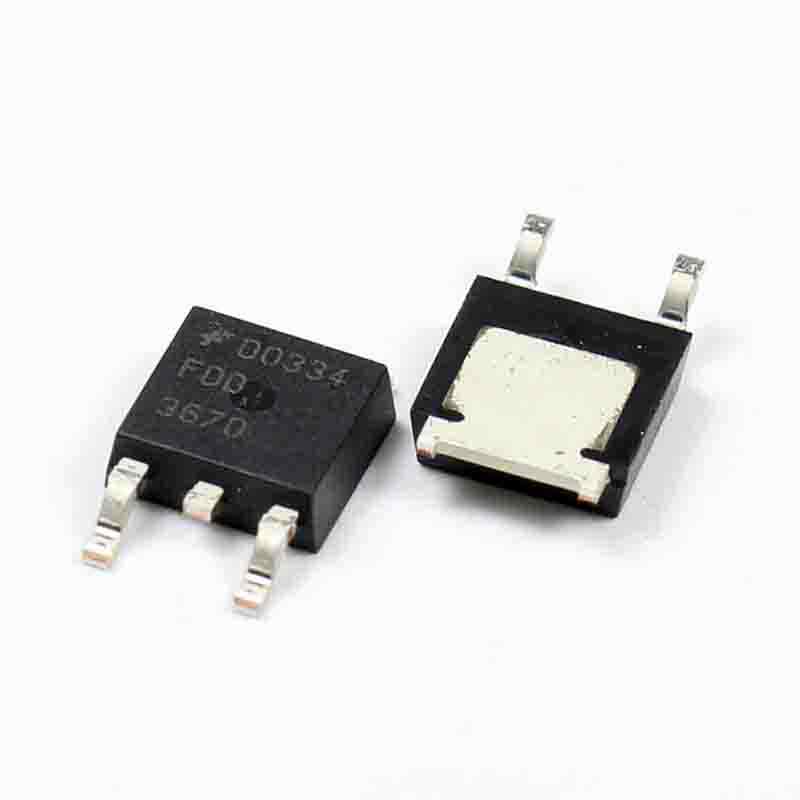

FDD3670 TO-252 MOSFET N-CH 100V 34A D-PAK

Brand: Fairchild Semiconductor

Product Code: #850388

Availability:In stock

$2.98 2.98

Qty

Ask about this product
FDD3670 DescriptionFDD3670 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25 C 34A
Rds On (Max) @ Id Vgs 32 mOhm @ 7.3A 10V
Vgs(th) (Max) @ Id 4V @ 250?A
Gate Charge (Qg) @ Vgs 80nC @ 10V
Input Capacitance (Ciss) @ Vds 2490pF @ 50V
Power - Max 1.6W
Mounting Type Surface Mount
Supplier Device Package TO-252
