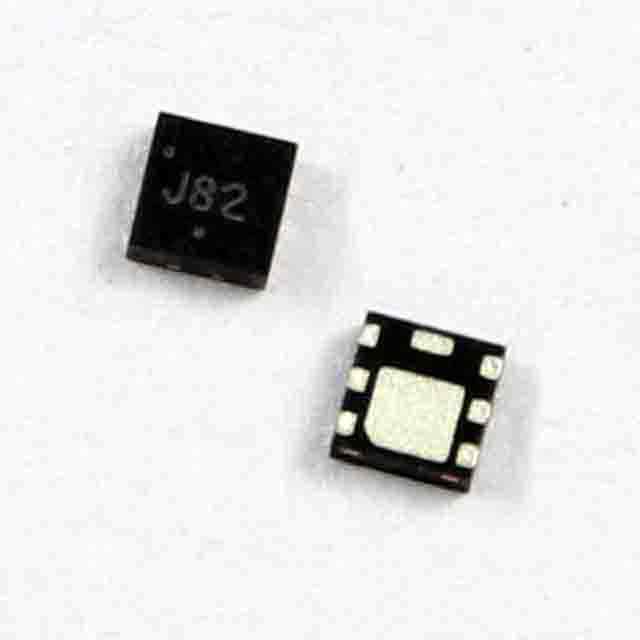

DMP1245UFCL-7 6-DFN1616 (1.6x1.6) MOSFET P-CH 12V 6.6A 6-UFDFN

Brand: Diodes Inc

Product Code: #441122

Availability:In stock

$1.31 1.31

Qty

Ask about this product
DMP1245UFCL-7 DescriptionDMP1245UFCL-7 Datasheet
FET Type MOSFET P-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 12V
Current - Continuous Drain (Id) @ 25 C 6.6A
Rds On (Max) @ Id Vgs 29 mOhm @ 4A 4.5V
Vgs(th) (Max) @ Id 950mV @ 250?A
Gate Charge (Qg) @ Vgs 26.1nC @ 8V
Input Capacitance (Ciss) @ Vds 1357.4pF @ 10V
Power - Max 613mW
Mounting Type Surface Mount
Supplier Device Package 6-DFN1616 (1.6x1.6)
